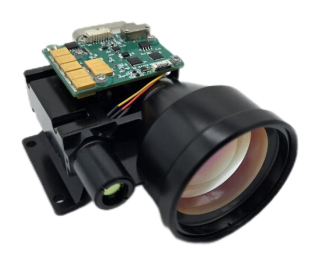

FW-ED12 1535nm Eye-safe Laser Ranging Module with Class 1 Safety 1.54μm Wavelength and ±2m Accuracy
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-ED12 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Wavelength | 1.54μm±0.02μm | Launch Lens Diameter | Φ15mm |
|---|---|---|---|
| Receiver Lens Diameter | Φ50mm | Ranging Accuracy | ±2m |
| Range Resolution | ≤30 M | Divergence Angle | ≤0.3 Mrad |
| Highlight | Class 1 Laser Ranging Module,1.54μm Laser Rangefinder Module,±2m accuracy Eye-safe Laser Module |
||
Product Description
FW-ED12 1535nm Eye-safe Laser Ranging Module
The FW-ED12 laser rangefinder module offers advanced ranging capabilities with eye-safe 1535nm laser technology. Designed for precision and reliability, this module features:
- Single-pulse and continuous ranging modes
- Distance selection functionality
- Front and rear target display
- Self-check function
- Adjustable continuous ranging frequency (1-10Hz)
- Compatible with PC host computer software and embedded systems
This versatile module is ideal for integration into handheld and multifunctional systems, with applications across various platforms including ground vehicles, portable devices, airborne systems, naval equipment, and space exploration applications.
Technical Specifications
| Laser Wavelength | 1.54μm±0.02μm |
| Eye Safety | Class 1 |
| Divergence Angle | ≤0.3 mrad |
| Laser Energy | ≥500 μJ |
| Launch Lens Diameter | Φ15 mm |
| Receiver Lens Diameter | Φ50 mm |
| Measuring Range (30% Reflectivity, ≥18km visibility) | 4m*6m objective ≥15km |
| Minimum Range | ≤50 m |
| Ranging Accuracy | ±2m |
| Ranging Frequency | 0.5Hz~10Hz |
| Number of multi-target detections | RS422 |
| False Alarm Rate | ≤1% |
| Precision Rate | ≥98% |
| Pin-in-lead package model | J30J |
| Supply Voltage | DC 12V |
| Standby Power Consumption | ≤1.2W |
| Average Power Consumption | ≤2W |
| Peak Power Consumption | ≤3W |
| Weight | ≤400g |
| Dimensions (L*W*H) | 125mm*85mm*58.5mm |
| Operation Temperature | -40~＋70℃ |
| Storage Temperature | -55~＋75℃ |
| Impact Resistance | Meets MIL-STD-810G testing standard |
| Vibration Resistance | Meets MIL-STD-810G testing standard |
Outline Dimensions
