2500m 5Hz Laser Rangefinder Module range finder module 1.54±0.02um
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | AT-LRF0605A |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | boxes |
| Delivery Time | 12-14 weeks |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 sets/years |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Wavelength | 1.54±0.02μm | Maximum Measuring Range | ≥2500m |
|---|---|---|---|
| Minimum Measuring Range | ≤50m | Ranging Accuracy | ≤ 2m |
| Repetition Frequency | ≥ 5Hz | Accurate Rate | ≥ 98% |
| Beam Angle | ≤0.5mrad | Volume | ≤60mmx45mmx31mm |
| Weight | ≤65g | Supple Voltage | 4.5V~5.5V |
| Highlight | 2500m Laser Rangefinder Module,5Hz Laser Rangefinder Module,range finder module |
||
Product Description

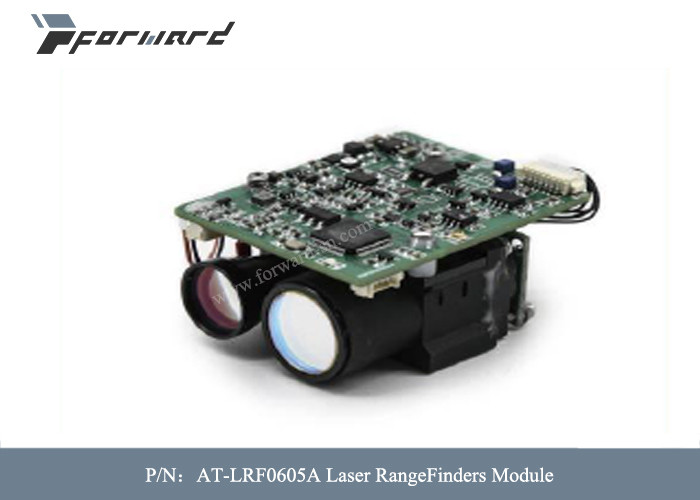

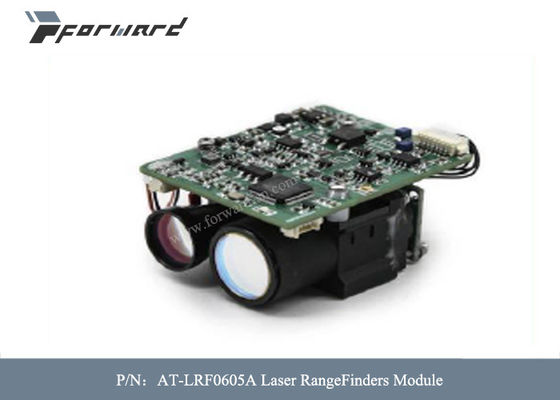

Laser RangeFinders Module AT-LRF0605A Eye-Safe 2500m Laser Wavelength 1.54±0.02μm
Descriptions of Laser RangeFinder Module:
The AT-LRF0605A laser ranging module uses a semiconductor laser, combined with an advanced optical system, high-efficiency drive, and amplifier circuit design. It can realize the first and last target distance measurement, self-inspection information response, fault location mode feedback and other functions, and has a small size. Light weight, high ranging accuracy, convenient operation, good gold adaptability, high reliability, etc.
Features of Laser RangeFinder Module:
- small and light
- Hight ranging accuracy
- Good acclimatization
- High reliability
Applications of Laser RangeFinder Module:
- Optical sight equipments
- Optoelectronic system
- UAV
Specifications of Laser RangeFinder Module:
| Laser Wavelength | 1.54±0.02μm |
| Maximum Measuring Range | ≥2500m |
| Minimum Measuring Range | ≤50m |
| Ranging Accuracy | ≤ 2m |
| Repetition Frequency | ≥ 5Hz |
| Accurate Rate | ≥ 98% |
| Beam Angle | ≤0.5mrad |
| Volume | ≤60mmx45mmx31mm |
| Weight | ≤65g |
| Supple Voltage | 4.5V~5.5V |
| Operating Temperature | -40℃~+60℃ |
| Storage Temperature | -45℃~+70℃ |
