2500m Laser Rangefinder Module Distance Measuring Sensor Module 1.55um

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: AT-LRF0402

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Supply Ability: 1000 sets/years

Get Best Price
Highlight:

2500m Laser Rangefinder Module

,

5V Laser Rangefinder Module

,

distance measuring sensor module 1.55um

Laser Wavelength:
1.55μm
Maximum Measuring Range:
≥2500m
Minimum Measuring Range:
≤30m
Ranging Accuracy:
≤ 2m
Repetition Frequency:
≥1~ 5Hz
Accurate Rate:
≥ 98%
Beam Angle:
≤1.2mrad
Volume:
≤50mmx37mmx22mm
Weight:
≤40g
Supple Voltage:
5V
Laser Wavelength:
1.55μm
Maximum Measuring Range:
≥2500m
Minimum Measuring Range:
≤30m
Ranging Accuracy:
≤ 2m
Repetition Frequency:
≥1~ 5Hz
Accurate Rate:
≥ 98%
Beam Angle:
≤1.2mrad
Volume:
≤50mmx37mmx22mm
Weight:
≤40g
Supple Voltage:
5V
2500m Laser Rangefinder Module Distance Measuring Sensor Module 1.55um

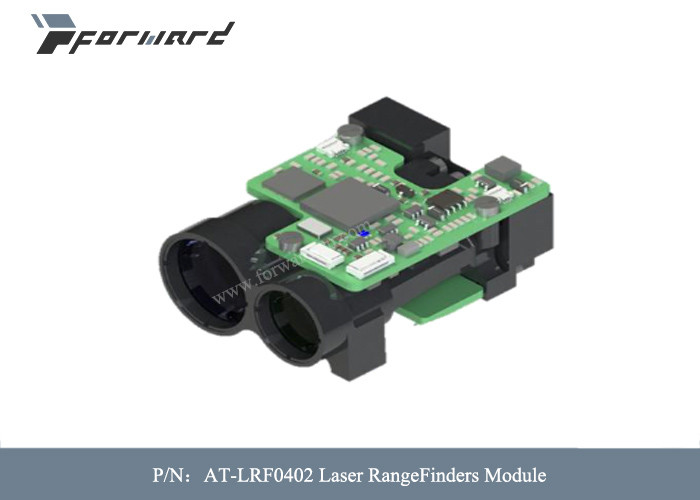

            Laser RangeFinders Module AT-LRF0402 Eye-Safe 2500m Laser Wavelength 1.55μm

Descriptions of Laser RangeFinders:



 The AT-LRF0402A laser ranging module uses a semiconductor laser, combined with an advanced optical system, high-efficiency drive, and amplifier circuit design. It can realize the first and last , self-inspection information response, fault location mode feedback and other functions, and has a small size. Light weight, high ranging accuracy, convenient operation, good gold adaptability, high reliability, etc.



Features of Laser RangeFinders:

  • small and light
  • Hight ranging accuracy
  • Good acclimatization
  • High reliability

Applications of Laser RangeFinders:

  • Optical sight equipments
  • Optoelectronic system
  • UAV

Specifications of Laser RangeFinders:



Laser Wavelength 1.55μm
Maximum Measuring Range ≥2500m
Minimum Measuring Range ≤30m
Ranging Accuracy ≤ 2m
Repetition Frequency ≥1~ 5Hz
Accurate Rate ≥ 98%
Beam Angle ≤1.2mrad
Volume ≤50mmx37mmx22mm
Weight ≤40g
Supple Voltage 5V
Operating Temperature -40℃~+55℃
