Home > products > Laser Rangefinder Module > 1535nm Eye-Safe 8000m Laser Rangefinder Module Laser Distance Module

1535nm Eye-Safe 8000m Laser Rangefinder Module Laser Distance Module

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: AT-LRF1308

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Supply Ability: 1000 sets/years

Get Best Price
Highlight:

1535nm Laser Rangefinder Module

,

8000m Laser Rangefinder Module

,

1535nm laser distance module

Laser Wavelength:
1535nm
Maximum Measuring Range:
≥8000m
Minimum Measuring Range:
≤50m
Ranging Accuracy:
≤ 2m
Repetition Frequency:
≥1~ 5Hz
Accurate Rate:
≥ 98%
Beam Angle:
0.5mrad
Volume:
82mmx59mmx49mm
Weight:
≤130g
Supple Voltage:
9~18V
Laser Wavelength:
1535nm
Maximum Measuring Range:
≥8000m
Minimum Measuring Range:
≤50m
Ranging Accuracy:
≤ 2m
Repetition Frequency:
≥1~ 5Hz
Accurate Rate:
≥ 98%
Beam Angle:
0.5mrad
Volume:
82mmx59mmx49mm
Weight:
≤130g
Supple Voltage:
9~18V
1535nm Eye-Safe 8000m Laser Rangefinder Module Laser Distance Module

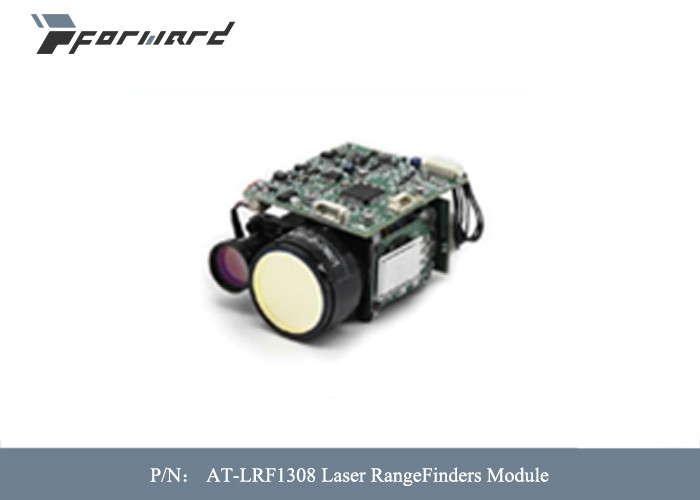

            Laser RangeFinders Module AT-LRF1308 Eye-Safe 8000m Laser Wavelength 1535nm

Descriptions of Laser RangeFinders:



 The AT-LRF1308 laser ranging module uses a semiconductor laser, combined with an advanced optical system, high-efficiency drive, and amplifier circuit design. It can realize the first and last target distance measurement, self-inspection information response, fault location mode feedback and other functions, and has a small size. Light weight, high ranging accuracy, convenient operation, good gold adaptability, high reliability, etc.



Features of Laser RangeFinders:

  • small and light
  • Hight ranging accuracy
  • Good acclimatization
  • High reliability

Applications of Laser RangeFinders:

  • Optical sight equipments
  • Optoelectronic system
  • UAV

Specifications of Laser RangeFinders:



Laser Wavelength 1535nμm
Maximum Measuring Range ≥8000m
Minimum Measuring Range ≤50m
Ranging Accuracy ≤ 2m
Repetition Frequency ≥1~ 5Hz
Accurate Rate ≥ 98%
Beam Angle ≤0.5mrad
Volume ≤82mmx58mmx49mm
Weight ≤130g
Supple Voltage 9~18V
Operating Temperature -40℃~+60℃

1535nm Eye-Safe 8000m Laser Rangefinder Module Laser Distance Module 0
