1.54um Laser Rangefinder Module Eye Safe ≥8000m Thermal Imaging Sensor Module

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: AT-LRF1408A

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Supply Ability: 1000 sets/years

Get Best Price
Highlight:

1.54um Laser Rangefinder Module

,

Laser Rangefinder Module 8000m

,

thermal imaging sensor module 1.54um

Laser Wavelength:
1.54μm
Maximum Measuring Range:
≥8000m
Minimum Measuring Range:
≤75m
Ranging Accuracy:
≤ 2m
Repetition Frequency:
≥1~ 5Hz
Accurate Rate:
≥ 98%
Beam Angle:
≤0.7mrad
Volume:
≤88mmx65mmx46mm
Weight:
≤145g
Supple Voltage:
9~14V
Laser Wavelength:
1.54μm
Maximum Measuring Range:
≥8000m
Minimum Measuring Range:
≤75m
Ranging Accuracy:
≤ 2m
Repetition Frequency:
≥1~ 5Hz
Accurate Rate:
≥ 98%
Beam Angle:
≤0.7mrad
Volume:
≤88mmx65mmx46mm
Weight:
≤145g
Supple Voltage:
9~14V

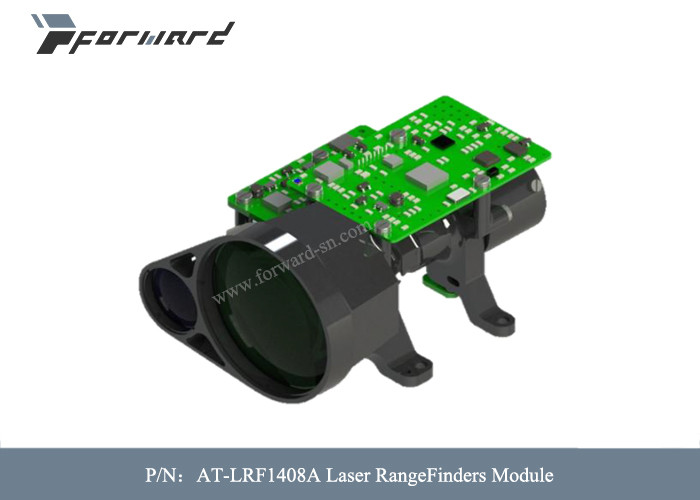

1.54um Laser Rangefinder Module Eye Safe ≥8000m Thermal Imaging Sensor Module

Laser RangeFinders Module AT-LRF1408A Eye-Safe ≥8000m Laser Wavelength 1.54μm



Descriptions of Laser RangerFinders Module:



The AT-LRF1408A laser ranging module uses a semiconductor laser, combined with an advanced optical system, high-efficiency drive, and amplifier circuit design. It can realize the first and last target distance measurement, self-inspection information response, fault location mode feedback and other functions, and has a small size. Light weight, high ranging accuracy, convenient operation, good gold adaptability, high reliability, etc.



Features of Laser RangerFinders Module:

  • small and light
  • Hight ranging accuracy
  • Good acclimatization
  • High reliability

Applications of Laser RangerFinders Module:

  • Optical sight equipments
  • Optoelectronic system
  • UAV

Specifications of Laser RangerFinders Module:



Laser Wavelength 1.54μm
Maximum Measuring Range ≥8000m
Minimum Measuring Range ≤75m
Ranging Accuracy ≤ 2m
Repetition Frequency ≥1~ 5Hz
Accurate Rate ≥ 98%
Beam Angle ≤0.7mrad
Volume ≤88mm×65mm×46mm
Weight ≤145g
Supple Voltage 9~14 V
Operating Temperature -40℃~+55℃





1.54um Laser Rangefinder Module Eye Safe ≥8000m  Thermal Imaging Sensor Module 0
