Home > products > Laser Rangefinder Module > AT-LRF0905A Laser Distance Sensor Module Eye-Safe 5000m Laser Wavelength 1535nm

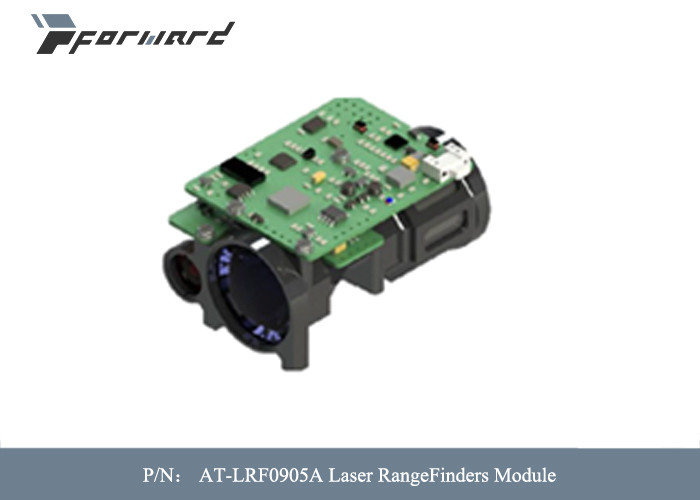

AT-LRF0905A Laser Distance Sensor Module Eye-Safe 5000m Laser Wavelength 1535nm

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: AT-LRF0905A

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Supply Ability: 1000 sets/years

Get Best Price
Highlight:

5000m laser distance sensor module

,

laser distance sensor module 1535nm

,

1535nm laser distance measurement module

Laser Wavelength:
1535nm
Maximum Measuring Range:
≥5000m
Minimum Measuring Range:
≤50m
Ranging Accuracy:
≤ 2m
Repetition Frequency:
≥1~ 5Hz
Accurate Rate:
≥ 98%
Beam Angle:
0.7mrad
Volume:
63.5mmx45mmx34.5mm
Weight:
≤90g
Supple Voltage:
9~14V
Laser Wavelength:
1535nm
Maximum Measuring Range:
≥5000m
Minimum Measuring Range:
≤50m
Ranging Accuracy:
≤ 2m
Repetition Frequency:
≥1~ 5Hz
Accurate Rate:
≥ 98%
Beam Angle:
0.7mrad
Volume:
63.5mmx45mmx34.5mm
Weight:
≤90g
Supple Voltage:
9~14V
AT-LRF0905A Laser Distance Sensor Module Eye-Safe 5000m Laser Wavelength 1535nm

            Laser RangeFinders Module AT-LRF0905A Eye-Safe 5000m Laser Wavelength 1535nm

Descriptions of Laser RangeFinders:



 The AT-LRF0905A laser ranging module uses a semiconductor laser, combined with an advanced optical system, high-efficiency drive, and amplifier circuit design. It can realize the first and last target distance measurement, self-inspection information response, fault location mode feedback and other functions, and has a small size. Light weight, high ranging accuracy, convenient operation, good gold adaptability, high reliability, etc.



Features of Laser RangeFinders:

  • small and light
  • Hight ranging accuracy
  • Good acclimatization
  • High reliability

Applications of Laser RangeFinders:

  • Optical sight equipments
  • Optoelectronic system
  • UAV

Specifications of Laser RangeFinders:



Laser Wavelength 1535nμm
Maximum Measuring Range ≥5000m
Minimum Measuring Range ≤50m
Ranging Accuracy ≤ 2m
Repetition Frequency ≥1~ 5Hz
Accurate Rate ≥ 98%
Beam Angle ≤0.7mrad
Volume ≤63.5mmx45mmx34.5mm
Weight ≤90g
Supple Voltage 9~14V
Operating Temperature -40℃~+60℃

AT-LRF0905A Laser Distance Sensor Module Eye-Safe 5000m  Laser Wavelength 1535nm 0
