AT-LRF1104A Laser RangeFinders Module Eye-Safe 2500m Laser Wavelength 1.55um
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | AT-LRF1104A |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | boxes |
| Delivery Time | 12-14 weeks |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 sets/years |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Wavelength | 1.55μm | Maximum Measuring Range | ≥4000m |
|---|---|---|---|
| Minimum Measuring Range | ≤50m | Ranging Accuracy | ≤ 2m |
| Repetition Frequency | ≥1~ 5Hz | Accurate Rate | ≥ 98% |
| Beam Angle | ≤1.2mrad | Volume | ≤92mmx50mmx34mm |
| Weight | ≤115g | Supple Voltage | 12V |
| Highlight | laser distance meter module 2500m,laser distance meter module 1.55um,Laser Range finder Module 5Hz |
||
Product Description

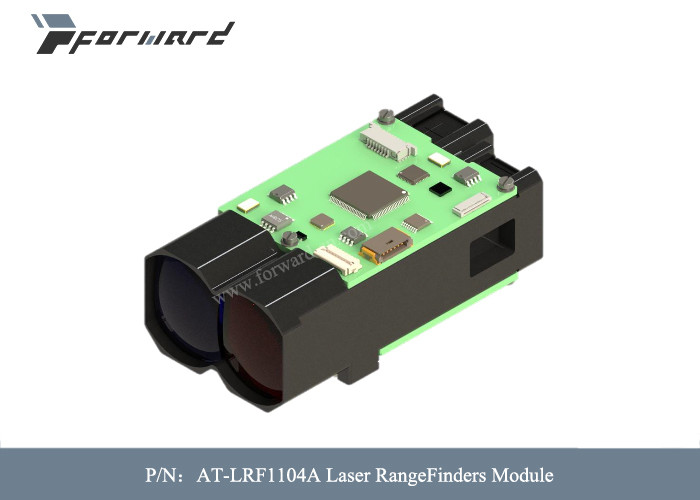

Laser RangeFinders Module AT-LRF1104A Eye-Safe 2500m Laser Wavelength 1.55μm
Descriptions of Laser RangeFinders Module:
The AT-LRF1104A laser ranging module uses a semiconductor laser, combined with an advanced optical system, high-efficiency drive, and amplifier circuit design. It can realize the first and last target distance measurement, self-inspection information response, fault location mode feedback and other functions, and has a small size. Light weight, high ranging accuracy, convenient operation, good gold adaptability, high reliability, etc.
Features of Laser RangeFinders Module:
- small and light
- Hight ranging accuracy
- Good acclimatization
- High reliability
Applications of Laser RangeFinders Module:
- Optical sight equipments
- Optoelectronic system
- UAV
Specifications of Laser RangeFinders Module:
| Laser Wavelength | 1.55μm |
| Maximum Measuring Range | ≥4000m |
| Minimum Measuring Range | ≤50m |
| Ranging Accuracy | ≤ 2m |
| Repetition Frequency | ≥1~ 5Hz |
| Accurate Rate | ≥ 98% |
| Beam Angle | ≤1.2mrad |
| Volume | ≤92mmx50mmx34mm |
| Weight | ≤115g |
| Supple Voltage | 12V |
| Operating Temperature | -40℃~+55℃ |
