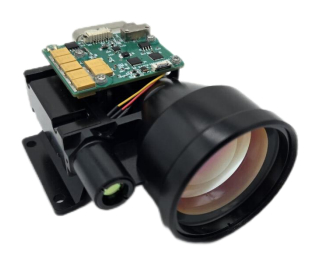

FW-ED12 1535nm Eye-safe Laser Ranging Module with 15km Range Φ15mm Launch Lens and Φ50mm Receiver Lens
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-ED12 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Wavelength | 1.54μm±0.02μm | Launch Lens Diameter | Φ15mm |
|---|---|---|---|
| Receiver Lens Diameter | Φ50mm | Ranging Accuracy | ±2m |
| Range Resolution | ≤30 M | Divergence Angle | ≤0.3 Mrad |
| Highlight | 15km range Laser Ranging Module,Φ15mm launch lens Laser Rangefinder Module,Φ50mm receiver lens Eye-safe Laser Module |
||
Product Description
FW-ED12 1535nm Eye-safe Laser Ranging Module
The FW-ED12 laser rangefinder features single-pulse ranging, continuous ranging, distance selection, front and rear target display, self-check function, and an adjustable continuous ranging frequency (1 ~ 10Hz). Equipped with PC host computer software and embedded software, it can be seamlessly integrated into handheld and multifunctional systems. It is widely applied to optoelectronic reconnaissance systems on various platforms, including ground vehicles, lightweight portable devices, airborne, naval, and space exploration applications.
Key Features
- 1535nm eye-safe laser wavelength (Class 1 safety)
- Precision ranging up to 15km
- Adjustable ranging frequency (0.5Hz-10Hz)
- Multi-platform compatibility (ground, air, naval, space)
- Robust MIL-STD-810G compliant construction
- Low power consumption design
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Wavelength | 1.54μm±0.02μm |
| Eye Safety | Class 1 |
| Divergence Angle | ≤0.3 mrad |
| Laser Energy | ≥500 μJ |
| Measuring Range (30% Reflectance) | 4m*6m objective ≥15km |
| Minimum Range | ≤50 m |
| Ranging Accuracy | ±2m |
| Ranging Frequency | 0.5Hz~10Hz |
| Supply Voltage | DC 12V |
| Weight | ≤400g |
| Dimensions (L*W*H) | 125mm*85mm*58.5mm |
| Operation Temperature | -40℃ to +70℃ |
| Storage Temperature | -55℃ to +75℃ |
Environmental Compliance
- Impact Resistance: Meets MIL-STD-810G testing standard
- Vibration Resistance: Meets MIL-STD-810G testing standard
Outline Dimensions
