FW-ED09 1535nm Eye-safe Laser Ranging Module with ≤1 mrad Divergence Angle and 3000m Range for Precision Measurement
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-ED09 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Wavelength | 1535±5nm | Launch Lens Diameter | Φ8mm |
|---|---|---|---|
| Receiver Lens Diameter | Φ20mm | Ranging Accuracy | ±2m |
| Range Resolution | ≤20 M | Divergence Angle | ≤1 Mrad |
| Highlight | ≤1 mrad Divergence Angle Laser Ranging Module,3000m Range Laser Rangefinder Module,3.3V TTL Communication Interface Eye-safe Laser Module |
||
Product Description
FW-ED09 1535nm Eye-safe Laser Ranging Module
The FW-ED09 erbium glass laser rangefinder is developed using self-developed bonded crystal erbium glass laser technology. This Class 1 eye-safe laser rangefinder can measure NATO targets at distances ≥3000m, featuring compact dimensions and low power consumption. The precision optoelectronic device calculates distance by emitting laser pulses to targets and measuring the laser flight time.
Key Features
- Class 1 eye-safe laser (1535±5nm wavelength)
- Compact size (Φ34mm*47.5mm) and lightweight (≤29g)
- Low power consumption (standby ≤1mW, average ≤0.8W)
- Multiple ranging frequencies (1Hz, 5Hz, 10Hz)
- Multi-target detection capability (up to 3 targets)
- Robust construction meeting MIL-STD-810G standards
- 3.3V TTL communication interface
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Wavelength | 1535±5nm |
| Eye Safety | Class 1 |
| Divergence Angle | ≤1 mrad |
| Laser Energy | ≥100 μJ |
| Measuring Range | NATO target (2.3m*2.3m) ≥3000m Human target (0.5m*1.7m) ≥1500m |
| Minimum Range | ≤15 m |
| Ranging Accuracy | ±2m |
| Ranging Frequency | Single, 1Hz, 5Hz, 10Hz |
| Multi-target Detection | Up to 3 targets |
| False Alarm Rate | ≤1% |
| Precision Rate | ≥98% |
| Supply Voltage | DC 3-5V |
| Weight | ≤29g±1g |
| Dimensions | Φ34mm*47.5mm |
| Operation Temperature | -40 to +70℃ |
| Storage Temperature | -55 to +75℃ |
| Environmental Standards | Meets MIL-STD-810G for impact and vibration resistance |

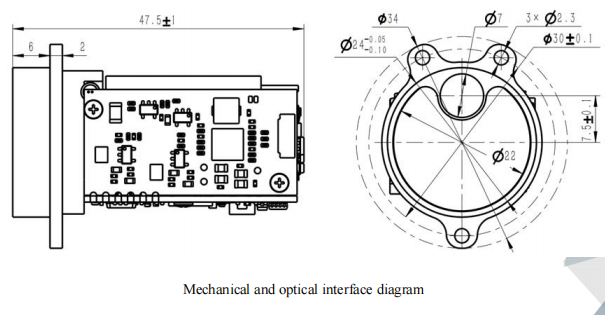

Outline Dimensions
