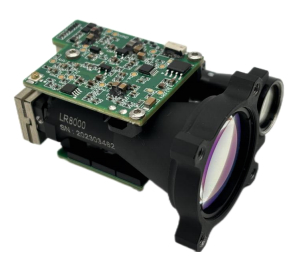

FW-ED06 1535nm Eye-safe Laser Ranging Module with Class 1 Safety and 10 km Range
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-ED06 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Wavelength | 1535±5nm | Launch Lens Diameter | Φ12mm |
|---|---|---|---|
| Receiver Lens Diameter | Φ25mm | Ranging Accuracy | ±2m |
| Range Resolution | ≤50 M | Divergence Angle | ≤0.3 Mrad |
| Highlight | 1535nm Laser Ranging Module,Class 1 Laser Rangefinder Module,10 km Range Eye-safe Laser Module |
||
Product Description
FW-ED06 1535nm Eye-safe Laser Ranging Module
Product Description
The FW-ED06 eye-safe ranging module is developed using self-developed 1535nm erbium glass laser technology. This Class 1 eye-safe product features multi-pulse ranging technology with a maximum range of 10 km. The compact module supports UART (TTL_3.3V) power supply and offers low power consumption, stable operation, and lightweight design.
Key Applications
- Security and road monitoring systems
- Robotic arms and industrial automation
- Night vision and optoelectronic pods
- Unmanned aerial vehicles (UAVs) and gun sights
- Outdoor sports equipment (golf, hunting)
- Infrared thermal imaging and engineering surveying
- Intelligent grain storage solutions
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Wavelength | 1535±5nm |
| Eye Safety | Class 1 |
| Divergence Angle | ≤0.3mrad |
| Laser Energy | ≥200 μJ |
| Measuring Range | NATO objective (2.3m*2.3m) ≥6000m Human target (0.5m*1.7m) ≥1200m |
| Minimum Range | ≤50 m |
| Ranging Accuracy | ±2m |
| Ranging Frequency | 1Hz ~10Hz |
| Multi-target Detection | Up to 3 targets |
| False Alarm Rate | ≤1% |
| Precision Rate | ≥98% |
| Supply Voltage | DC 4.5-12 V |
| Weight | ≤58±1g |
| Dimensions (L*W*H) | 65*48*32mm |
| Operation Temperature | -40~＋70℃ |
| Impact/Vibration Resistance | Meets MIL-STD-810G testing standard |
Outline Dimension
