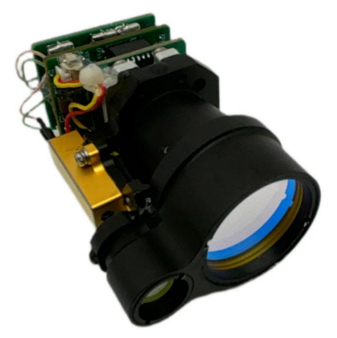

FW-ED05 1535nm Eye-safe Laser Ranging Module with 6000m Range ≤0.5 mrad Divergence Angle and MIL-STD-810G Testing Standard
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-ED05 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Wavelength | 1535±5nm | Launch Lens Diameter | Φ10mm |
|---|---|---|---|
| Receiver Lens Diameter | Φ25mm | Ranging Accuracy | ±2m |
| Range Resolution | ≤15 M | Divergence Angle | ≤0.5 Mrad |
| Highlight | 6000m Range Laser Ranging Module,≤0.5 mrad Divergence Angle Laser Rangefinder Module,MIL-STD-810G Testing Standard Eye-safe Laser Module |
||
Product Description
FW-ED05 1535nm Eye-safe Laser Ranging Module
The FW-ED05 laser ranging module is a multi-pulse laser rangefinder designed for precision distance measurement. Capable of measuring NATO standard targets (2.3m*2.3m) at distances ≥6000m, this compact module combines exceptional performance with eye-safe operation (Class 1 safety rating).
Key Features
- Compact and lightweight design (≤90g)
- Low power consumption for extended operation
- Long operational range with high accuracy (±2m)
- Class 1 eye-safe laser (1535±5nm wavelength)
- Multi-target detection capability (up to 3 targets)
- Rugged construction meeting MIL-STD-810G standards
- Wide operating temperature range (-40°C to +70°C)
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Wavelength | 1535±5nm |
| Eye Safety | Class 1 |
| Divergence Angle | ≤0.5mrad |
| Laser Energy | ≥200 μJ |
| Measuring Range (NATO target) | ≥6000m (2.3m*2.3m) |
| Measuring Range (Human target) | ≥1500m (0.5m*1.7m) |
| Minimum Range | ≤15m |
| Ranging Accuracy | ±2m |
| Ranging Frequency | 0.5Hz ~10Hz |
| Supply Voltage | DC 12V |
| Weight | ≤90g |
| Dimensions (L*W*H) | 70*32*40mm |
| Operation Temperature | -40°C to +70°C |
Applications
Ideal for laser measurement systems, Unmanned Aerial Systems (UAS), optical pods, boundary monitoring, and other precision ranging applications requiring eye-safe operation.
Outline Dimensions
