FW-ED04 1535nm Eye-safe Laser Ranging Module with ±2m Accuracy ≤0.6mrad Divergence Angle and MIL-STD-810G Testing Standard
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-ED04 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Wavelength | 1535±5nm | Launch Lens Diameter | Φ8mm |
|---|---|---|---|
| Receiver Lens Diameter | Φ16mm | Ranging Accuracy | ±2m |
| Range Resolution | ≤20 M | Divergence Angle | ≤0.6 Mrad |
| Highlight | ±2m Accuracy Laser Ranging Module,≤0.6mrad Divergence Angle Laser Rangefinder Module,MIL-STD-810G Testing Standard Eye-safe Laser Module |
||
Product Description

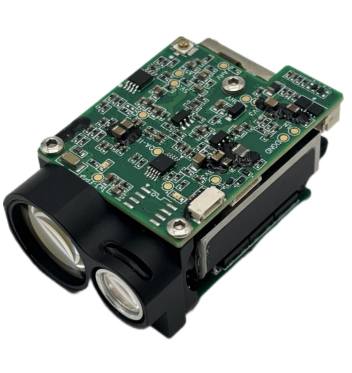

FW-ED04 1535nm Eye-safe Laser Ranging Module
The FW-ED04 eye-safe laser rangefinder module from ERDI TECH utilizes a self-developed 1535nm Diode Pump Solid State microchip laser. This compact module (≤48*30.5*21mm, ≤32g) delivers NATO target ranging of 2.3m*2.3m at distances ≥4km.
Key Features
- Stable laser measurement with self-testing capability
- Temperature reporting and three-target ranging
- Pre- and post-measurement target indication
- Single and continuous ranging modes (1Hz-10Hz)
- Baud rate configuration and serial port update support
- Laser launch tracking functionality
- Ideal for laser distance measurement, UAS, optical pods, and boundary monitoring
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Wavelength | 1535±5nm |
| Eye Safety | Class 1 |
| Divergence Angle | ≤0.6mrad |
| Laser Energy | ≥200 μJ |
| Launch Lens Diameter | Φ8mm |
| Receiver Lens Diameter | Φ16mm |
| Measuring Range (Reflectance 30%; visibility ≥5km) | NATO target (2.3m*2.3m) ≥4000m Human target (0.5m*1.7m) ≥1200m |
| Minimum Range | ≤15m |
| Ranging Accuracy | ±2m |
| Ranging Frequency | Single, 1Hz-10Hz |
| Multi-target Detection | Up to 3 targets |
| False Alarm Rate | ≤1% |
| Precision Rate | ≥98% |
| Supply Voltage | DC 3-5V |
| Weight | ≤32±1g |
| Dimensions (L*W*H) | 48*30.5*21mm |
| Operation Temperature | -40℃ to +70℃ |
| Storage Temperature | -55℃ to +75℃ |
| Durability Standards | Meets MIL-STD-810G for impact and vibration resistance |
Outline Dimension
