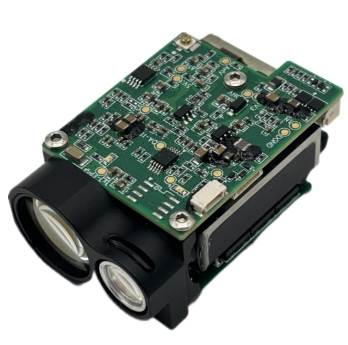

FW-ED03 1535nm Lightweight Laser Ranging Module with Serial Port Program Updates and Embedded Software
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-ED03 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Wavelength | 1535±5nm | Launch Lens Diameter | Φ8mm |
|---|---|---|---|
| Receiver Lens Diameter | Φ16mm | Ranging Accuracy | ±2m |
| Range Resolution | ≤20 M | Divergence Angle | ≤0.6 Mrad |
| Highlight | Lightweight Laser Ranging Module,Serial Port Program Updates Laser Rangefinder Module,Embedded Software Eye-safe Laser Module |
||
Product Description
FW-ED03 1535nm Eye-safe Laser Ranging Module
Product Description
The FW-ED03 eye-safe laser ranging module features a self-developed 1535nm diode-pumped solid-state microchip laser. This compact yet powerful module can measure distances of NATO targets (2.3m*2.3m) up to ≥3000m, with dimensions of only ≤48*30.5*21 mm and weight ≤32g.
Designed for seamless integration, the module supports serial port program updates and offers multiple installation options with various electrical interfaces (housing excluded). Its embedded software makes it ideal for integration into handheld portable devices or multifunctional systems. Common applications include laser ranging, Unmanned Aerial Systems (UAS), optical pods, and border monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Wavelength | 1535±5nm |
| Eye Safety | Class 1 |
| Divergence Angle | ≤0.6mrad |
| Laser Energy | ≥100 μJ |
| Launch Lens Diameter | Φ8mm |
| Receiver Lens Diameter | Φ16mm |
| Measuring Range (Reflectance 30%; visibility ≥ 5km) | NATO target (2.3m*2.3m) ≥3000m Human target (0.5m*1.7m) ≥1200m |
| Minimum Range | ≤15 m |
| Ranging Accuracy | ±2m |
| Ranging Frequency | Single, 1Hz ~10Hz |
| Number of multi-target detections | Up to 3 targets |
| False Alarm Rate | ≤1% |
| Precision Rate | ≥98% |
| Pin-in-lead package model | FWF08002-S06B13W5M |
| Supply Voltage | DC 3~5 V |
| Standby Power Consumption | ≤1mW |
| Weight | ≤32±1 g |
| Dimensions (L*W*H) | 48*30.5*21mm |
| Operation Temperature | -40~＋70℃ |
| Storage Temperature | -55~＋75℃ |
| Impact Resistance | Meets MIL-STD-810G testing standard |
| Vibration Resistance | Meets MIL-STD-810G testing standard |
Outline Dimension
