Portable Anti Drone System Backpack Type

Product Details

Place of Origin: China

Brand Name: Forward

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Standard Package

Payment Terms: L/C, T/T

Supply Ability: 100 pcs/year

Get Best Price

Portable Anti Drone System


Backpack Anti Drone System

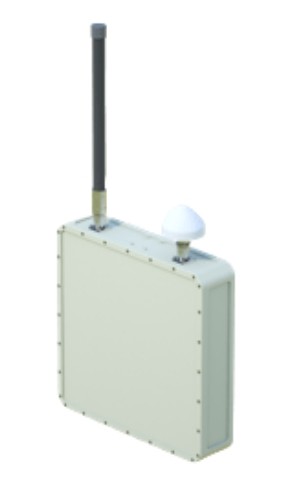

Portable Anti Drone System Backpack Type

Anti Drone System  (Backpack) | Portable Series

Descriptions of Anti Drone System  (Backpack) | Portable Series

FW-XD-PLN3000P (backpack type) deceptively interferes with satellite navigation coordinate information received by UAVs using satellite navigation and positioning by regenerating satellite navigation spoofing signals of not less than two frequencies. It can realise the functions of directional repulsion (8 directions) and area denial, etc. The equipment is compact and easy to carry, and can be flexibly applied in mobile. It is mainly used for civil UAVs relying on the above frequency points and without other auxiliary positioning and deception signal detection models such as vision and ultrasonic wave.




Features of Anti Drone System (Backpack) | Portable Series

Very low radiated power
Direction of Dispersion
Portable deployment


Specifications of Anti Drone System  (Backpack) | Portable Series



Supported Frequency Bands GPS L1/GLONASS L1/BDS B1
signal power ≤1W
action distance >2000m
Continuous autonomous working capacity Autonomous and unattended operation for 24 hours
Strategy Support Directed displacement, area denial
Signalling time ≤3s
Signal intrusion time <10s
Power Consumption ≤40w
Directional drive  8 directions
operating temperature -40°C ~ +70°C (customised power supply)
protection class IP66
Product Size 320mm*320mm*94mm
Weight ≤10KG
