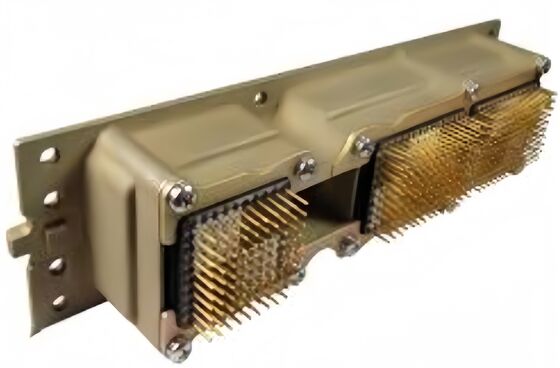

ARINC 600 Rack Panel Connector Avionics Grade Size 2 High Density 150 Contacts

  • ARINC 600 Rack Panel Connector Avionics Grade Size 2 High Density 150 Contacts
Brand Name OEM
Certification ISO9001
Model Number ARINC600-S2-150
Packaging Details Anti-static bag with foam cushioning, export-grade reinforced carton
Delivery Time 5-8 weeks
Payment Terms T/T
Product Details
Standard ARINC 600 Connector Size Size 2
Contact Quantity 150 Contact Type Crimp, Removable
Insert Arrangement High Density Operating Temperature -55°C To +125°C
Shell Material Aluminum Alloy, Nickel Plated Application Avionics LRU Rack And Panel
Highlight

ARINC 600 Avionics Connector

,

Rack Panel Connector LRU

,

150 Contact High Density
Leave a Message
Product Description

ARINC 600 Rack and Panel Connector — Avionics Grade

Direct equivalent to TE Connectivity and ITT Cannon ARINC 600 rack and panel connectors. Designed for line replaceable units (LRU) in commercial and avionics, delivering reliable high-density interconnection for flight-critical systems.

Key Features

  • Size 2 connector with 150 high-density contacts
  • Positive polarization and keying for error-proof mating
  • Removable crimp contacts for easy field maintenance
  • Robust aluminum alloy shell with nickel plating
  • Environmentally sealed against dust and moisture
  • Fully compliant with ARINC 600 specification

Technical Specifications

  • Standard: ARINC 600
  • Connector Size: Size 2
  • Contact Quantity: 150
  • Contact Type: Crimp, removable
  • Operating Temperature: -55°C to +125°C
  • Dielectric Withstanding Voltage: 1000 V RMS
  • Mating Cycles: 500 minimum

Applications

Flight deck displays, communication and navigation equipment, flight management computers, and other avionics LRUs.

Manufacturing facilities are ISO 9001:2015 and AS9100D certified. All products are 100% tested before shipment. Contact us for datasheets and cross-reference support.
