Home > products > Aviation Parts > MINISMDC200F PCB Mount Resettable Thermal Fuse 100A

MINISMDC200F PCB Mount Resettable Thermal Fuse 100A

Product Details

Model Number: MINISMDC200F-2

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Get Best Price
Highlight:

PCB Mount resettable thermal fuse

,

resettable thermal fuse 100A

,

MINISMDC200F

Mfr:
Littelfuse
Product Category:
Resettable Fuses - PPTC
Mounting Style:
PCB Mount
Termination Style::
SMD/SMT
Hold Current:
2 A
Maximum Voltage:
8 VDC
Trip Current::
4 A
Current Rating - Max::
100 A
Resistance::
70 MOhms
Package / Case::
1812 (4532 Metric)
Mfr:
Littelfuse
Product Category:
Resettable Fuses - PPTC
Mounting Style:
PCB Mount
Termination Style::
SMD/SMT
Hold Current:
2 A
Maximum Voltage:
8 VDC
Trip Current::
4 A
Current Rating - Max::
100 A
Resistance::
70 MOhms
Package / Case::
1812 (4532 Metric)
MINISMDC200F PCB Mount Resettable Thermal Fuse 100A

               Aviation Parts MINISMDC200F-2 Resettable Fuses Current Rating - Max 100 A





Descriptions of Aviation Parts:



PolySwitch surface-mount devices are an effective circuit protection method for computer, consumer, multimedia, portable and automotive electronics applications. In an affort to reduce the size and cost of surfacemount devices, Littelfuse PolySwitch team introduced the miniSMD product series in 1995. Subsequently, we developed the microSMD, nanoSMD, picoSMD and femtoSMD family of products. The femtoSMD series reduced the device size to a 1608mm (0603 mils) footprint, which is one-twelfth the size of the popular miniSMD series. Recent additions to the PolySwitch surface-mount series include 1.1A picoSMD 1210mm (0805 mils) and 0.35A femtoSMD 1608mm (0603 mils) devices.



Features of Aviation Parts:

  • • RoHS compliant

    • Halogen free

    (refers to: Br≥900ppm, Cl≥900ppm, Br+Cl≥1500ppm)

    • Broadest range of resettable devices available in the

    industry

    • Current ratings from 0.05 to 3.1A

    • Voltage ratings from 6V computer and electronic

    applications to 60V telecom applications

    • Agency recognition: UL, CSA, TÜV

    • Small footprint

    • Fast time-to-trip

    • Low resistance

Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: Littelfuse
Product Category: Resettable Fuses - PPTC
RoHS: Details
Series: miniSMD
Mounting Style: PCB Mount
Termination Style: SMD/SMT
Hold Current: 2 A
Maximum Voltage: 8 VDC
Trip Current: 4 A
Current Rating - Max: 100 A
Resistance: 70 mOhms
Package / Case: 1812 (4532 metric)
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: Littelfuse
Height: 1.22 mm
Length: 4.73 mm
Moisture Sensitive: Yes
Pd - Power Dissipation: 1 W
Product Type: Resettable Fuses - PPTC
Factory Pack Quantity: 2000
Subcategory: PPTC Resettable Fuses
Tradename: PolySwitch
Type: PolySwitch Resettable Fuses
Width: 3.41 mm
Part # Aliases: A86932-000 RF1410-000
Unit Weight: 0.003527 oz

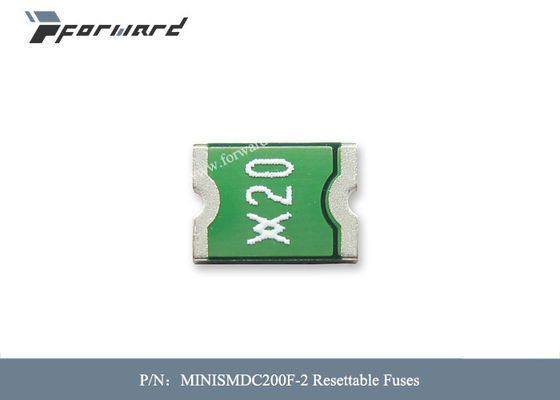

MINISMDC200F PCB Mount Resettable Thermal Fuse 100A 0

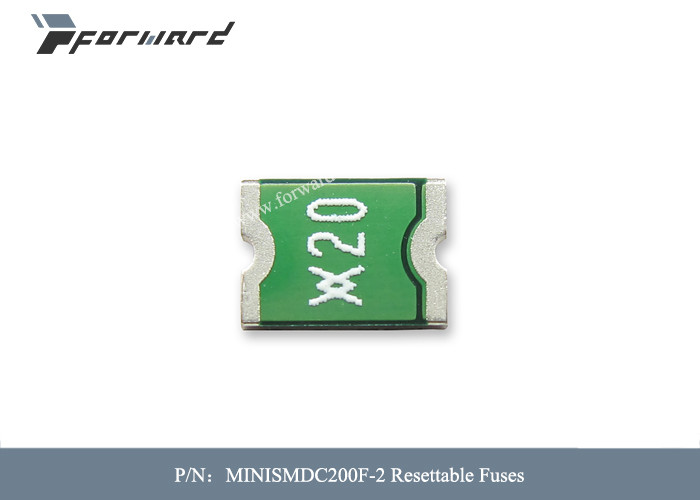

MINISMDC200F PCB Mount Resettable Thermal Fuse 100A 1
