MC14053BDR2G 2 Channel Analog Multiplexer Switch Supply Voltage Max 18V

Product Details

Model Number: MC14053BDR2G

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Get Best Price
Highlight:

MC14053BDR2G 2 channel analog multiplexer

,

2 channel analog multiplexer 18V

,

MC14053BDR2G

Mfr:
Onsemi
Product Category:
Multiplexer Switch ICs
Mounting Style:
SMD/SMT
Package / Case:
SOIC-16
Number Of Channels:
2 Channel
Supply Voltage - Min:
3 V
Supply Voltage - Max:
18 V
On Resistance - Max:
1.05 KOhms
On Time - Max:
550 Ns
Off Time - Max:
550 Ns
Mfr:
Onsemi
Product Category:
Multiplexer Switch ICs
Mounting Style:
SMD/SMT
Package / Case:
SOIC-16
Number Of Channels:
2 Channel
Supply Voltage - Min:
3 V
Supply Voltage - Max:
18 V
On Resistance - Max:
1.05 KOhms
On Time - Max:
550 Ns
Off Time - Max:
550 Ns
MC14053BDR2G 2 Channel Analog Multiplexer Switch Supply Voltage Max 18V

               Aviation Parts MC14053BDR2G Multiplexer Switch Supply Voltage - Max 18 V





Descriptions of Aviation Parts:



The MC14051B, MC14052B, and MC14053B analog multiplexers are digitally−controlled analog switches. The MC14051B effectively implements an SP8T solid state switch, the MC14052B a DP4T, and the MC14053B a Triple SPDT. All three devices feature low ON impedance and very low OFF leakage current. Control of analog signals up to the complete supply voltage range can be achieved.



Features of Aviation Parts:

  • • Switch Function is Break Before Make

    • Supply Voltage Range = 3.0 Vdc to 18 Vdc

    • Analog Voltage Range (VDD − VEE) = 3.0 to 18 V

    Note: VEE must be ≤ VSS

    • Linearized Transfer Characteristics

    • Low−noise − 12 nV/√Cycle, f ≥ 1.0 kHz Typical

    • Pin−for−Pin Replacement for CD4051, CD4052, and CD4053

    • For 4PDT Switch, See MC14551B

    • For Lower RON, Use the HC4051, HC4052, or HC4053

    High−Speed CMOS Devices

    • NLV Prefix for Automotive and Other Applications Requiring

    Unique Site and Control Change Requirements; AEC−Q100

    Qualified and PPAP Capable

    • These Devices are Pb−Free and are RoHS Compliant

Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: onsemi
Product Category: Multiplexer Switch ICs
RoHS: Details
Series: MC14053B
Product: Multiplexers/Demultiplexers
Mounting Style: SMD/SMT
Package / Case: SOIC-16
Number of Channels: 2 Channel
Configuration: 3 x 2:1
Supply Voltage - Min: 3 V
Supply Voltage - Max: 18 V
Minimum Dual Supply Voltage: -
Maximum Dual Supply Voltage: -
On Resistance - Max: 1.05 kOhms
On Time - Max: 550 ns
Off Time - Max: 550 ns
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Bandwidth: 17 MHz
Brand: onsemi
Height: 1.5 mm
Length: 10 mm
Operating Supply Voltage: 3 V to 18 V
Pd - Power Dissipation: 500 mW (1/2 W)
Product Type: Multiplexer Switch ICs
Propagation Delay Time: 65 ns
Factory Pack Quantity: 2500
Subcategory: Switch ICs
Supply Type: Single Supply
Width: 4 mm
Unit Weight: 0.023492 oz

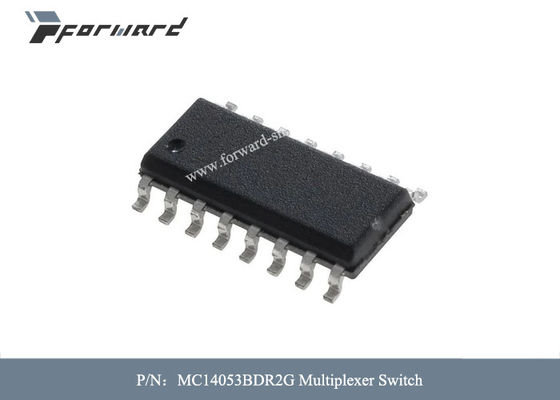

MC14053BDR2G 2 Channel Analog Multiplexer Switch Supply Voltage Max 18V 0
