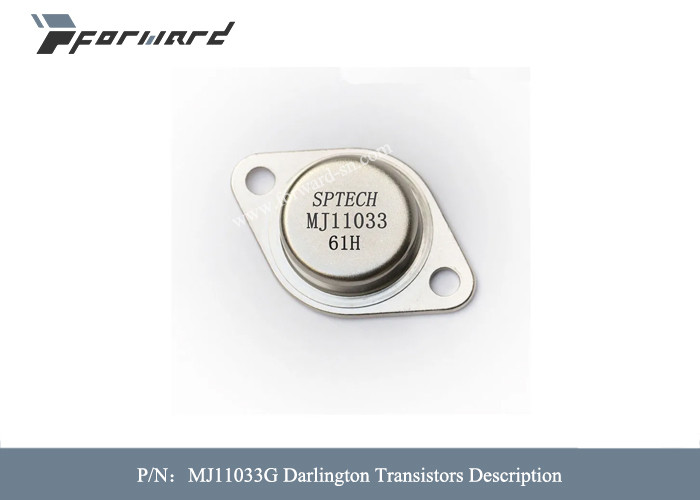

MJ11033G Aviation Parts Darlington Emitter Transistors 5V

Product Details

Model Number: MJ11033G

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Get Best Price
Highlight:

Aviation Parts Darlington Emitter

,

Aviation Parts 5V

,

MJ11033G

Mfr:
Onsemi
Product Category:
Darlington Transistors
Collector- Emitter Voltage VCEO Max:
120 V
Emitter- Base Voltage VEBO:
5 V
Collector- Base Voltage VCBO:
120 V
Maximum DC Collector Current::
50 A
Pd - Power Dissipation:
300 W
Mounting Style::
Through Hole
Package / Case:
TO-204-2 (TO-3)
Minimum Operating Temperature:
- 55 C
Mfr:
Onsemi
Product Category:
Darlington Transistors
Collector- Emitter Voltage VCEO Max:
120 V
Emitter- Base Voltage VEBO:
5 V
Collector- Base Voltage VCBO:
120 V
Maximum DC Collector Current::
50 A
Pd - Power Dissipation:
300 W
Mounting Style::
Through Hole
Package / Case:
TO-204-2 (TO-3)
Minimum Operating Temperature:
- 55 C
MJ11033G Aviation Parts Darlington Emitter Transistors 5V

                   Aviation Parts MJ11033G Darlington Transistors Emitter- Base Voltage 5 V


Descriptions of Aviation Parts:

High−Current Complementary Silicon Power Transistors are for use as output devices in complementary general purpose amplifier applications.

Features of Aviation Parts:

  • • High DC Current Gain − hFE = 1000 (Min) @ IC = 25 Adc
    hFE = 400 (Min) @ IC = 50 Adc
    • Curves to 100 A (Pulsed)
    • Diode Protection to Rated IC
    • Monolithic Construction with Built−In Base−Emitter Shunt Resistor
    • Junction Temperature to +200C
    • Pb−Free Packages are Available*

Specifications of Aviation Parts:


Product Attribute Attribute Value
Manufacturer: onsemi
Product Category: Darlington Transistors
RoHS: Details
Configuration: Single
Transistor Polarity: PNP
Collector- Emitter Voltage VCEO Max: 120 V
Emitter- Base Voltage VEBO: 5 V
Collector- Base Voltage VCBO: 120 V
Maximum DC Collector Current: 50 A
Pd - Power Dissipation: 300 W
Mounting Style: Through Hole
Package / Case: TO-204-2 (TO-3)
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Series: MJ11033
Packaging: Tray
Brand: onsemi
Continuous Collector Current: 50 A
DC Collector/Base Gain hfe Min: 400, 1000
Height: 8.51 mm
Length: 38.86 mm
Product Type: Darlington Transistors
Factory Pack Quantity: 100
Subcategory: Transistors
Width: 26.67 mm
Unit Weight: 0.495987 oz
