MC33179DR2G Aviation Parts Operational Amplifiers SR - Slew Rate 2V/Us

Product Details

Model Number: MC33179DR2G

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Get Best Price
Highlight:

4 Channel Aviation Parts

,

Aviation Parts 2V/us

,

MC33179DR2G

Mfr:
Onsemi
Product Category:
Operational Amplifiers - Op Amps
Mounting Style:
SMD/SMT
Package / Case:
SOIC-14
Number Of Channels:
4 Channel
Supply Voltage - Min:
36 V, +/- 18 V
GBP - Gain Bandwidth Product::
5 MHz
Output Current Per Channel:
80 MA
SR - Slew Rate:
2 V/us
Vos - Input Offset Voltage:
3 MV
Mfr:
Onsemi
Product Category:
Operational Amplifiers - Op Amps
Mounting Style:
SMD/SMT
Package / Case:
SOIC-14
Number Of Channels:
4 Channel
Supply Voltage - Min:
36 V, +/- 18 V
GBP - Gain Bandwidth Product::
5 MHz
Output Current Per Channel:
80 MA
SR - Slew Rate:
2 V/us
Vos - Input Offset Voltage:
3 MV
MC33179DR2G Aviation Parts Operational Amplifiers SR - Slew Rate 2V/Us

                 Aviation Parts MC33179DR2G Operational Amplifiers SR - Slew Rate 2 V/us





Descriptions of Aviation Parts:



The MC33178/9 series is a family of high quality monolithic amplifiers employing Bipolar technology with innovative high performance concepts for quality audio and data signal processing applications. This device family incorporates the use of high frequency PNP input transistors to produce amplifiers exhibiting low input offset voltage, noise and distortion. In addition, the amplifier provides high output current drive capability while consuming only 420 A of drain current per amplifier. The NPN output stage used, exhibits no deadband crossover distortion, large output voltage swing, excellent phase and gain margins, low open−loop high frequency output impedance, symmetrical source and sink AC frequency performance.



Features of Aviation Parts:

  • • 600 Output Drive Capability

    • Large Output Voltage Swing

    • Low Offset Voltage: 0.15 mV (Mean)

    • Low T.C. of Input Offset Voltage: 2.0 V/°C

    • Low Total Harmonic Distortion: 0.0024%

    (@ 1.0 kHz w/600 Load)

    • High Gain Bandwidth: 5.0 MHz

    • High Slew Rate: 2.0 V/s

    • Dual Supply Operation: ±2.0 V to ±18 V

    • ESD Clamps on the Inputs Increase Ruggedness without Affecting

    Device Performance

    • Pb−Free Packages are Available

Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: onsemi
Product Category: Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style: SMD/SMT
Package / Case: SOIC-14
Number of Channels: 4 Channel
Supply Voltage - Max: 36 V, +/- 18 V
GBP - Gain Bandwidth Product: 5 MHz
Output Current per Channel: 80 mA
SR - Slew Rate: 2 V/us
Vos - Input Offset Voltage: 3 mV
Supply Voltage - Min: 4 V, +/- 2 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Ib - Input Bias Current: 500 nA
Operating Supply Current: 1.7 mA
Shutdown: No Shutdown
CMRR - Common Mode Rejection Ratio: 80 dB
en - Input Voltage Noise Density: 8 nV/sqrt Hz
Series: MC33179
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Amplifier Type: Low Power Amplifier
Brand: onsemi
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
Height: 1.5 mm
In - Input Noise Current Density: 0.33 pA/sqrt Hz
Length: 8.75 mm
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 2 V
Operating Supply Voltage: 4 V to 36 V, +/- 2 V to +/- 18 V
Product: Operational Amplifiers
Product Type: Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio: 80 dB
Factory Pack Quantity: 2500
Subcategory: Amplifier ICs
Supply Type: Single, Dual
Technology: Bipolar
Vcm - Common Mode Voltage: Negative Rail + 2 V to Positive Rail - 2 V
Voltage Gain dB: 106.02 dB
Width: 4 mm
Unit Weight: 0.011923 oz

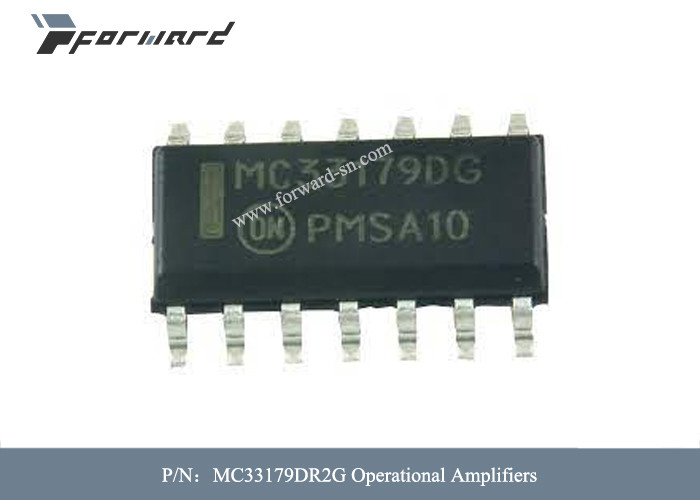

MC33179DR2G Aviation Parts Operational Amplifiers SR - Slew Rate 2V/Us 0
