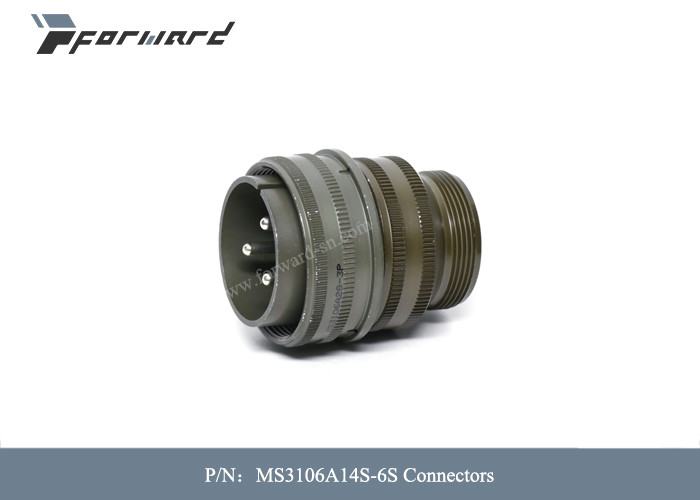

13A 6 Position Aviation Parts MS3106A14S-6S Connectors Current Rating 13A

Product Details

Model Number: MS3106A14S-6S

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Get Best Price
Highlight:

13A Aviation Parts

,

14S Shell Aviation Parts

,

MS3106A14S-6S

Mfr:
Amphenol
Product Category:
Circular MIL Spec Connector
Contact Gender:
Socket (Female)
Insert Arrangemen:
14S-06
Shell Size:
14S
Termination Style:
Solder
Maximum DC Collector Current:
3 A
Mounting Style:
Free Hanging
Current Rating:
13 A
Contact Plating:
Silver
Mfr:
Amphenol
Product Category:
Circular MIL Spec Connector
Contact Gender:
Socket (Female)
Insert Arrangemen:
14S-06
Shell Size:
14S
Termination Style:
Solder
Maximum DC Collector Current:
3 A
Mounting Style:
Free Hanging
Current Rating:
13 A
Contact Plating:
Silver
13A 6 Position Aviation Parts MS3106A14S-6S Connectors Current Rating 13A

                     Aviation Parts MS3106A14S-6S Connectors Current Rating 13 A 6 Position


Descriptions of Aviation Parts:


Amphenol Industrial MS 5015 Series — MIL-DTL-5015 and MIL-5015 Type Standard Cylindrical Connectors:
MS connectors meet the latest performance requirements of MIL-DTL-5015. These connectors represent well-proven electrical capability at an acceptable cost for most equipment where durability is important. MIL-DTL-5015 features threaded couplings and single key/keyway polarization, representing maximum simplicity in design. Applications include military ground support equipment, ordnance and shipboard installations. Amphenol Industrial Operations manufactures five classes of connectors to meet different requirements. Class designations and brief descriptions are listed below.


Features of Aviation Parts:

  • · Environmental sealing with Combined power and signal all in one connector
    · The RADSOK® advantage provides contacts that handle up to 150% higher amperages than standard contacts.
    · MIL-C-5015 features threaded couplings and single key/keyway polarization, representing maximum simplicityin design
    · Operating voltage to 3000 VAC (RMS) at sea level
    · Splash proof with the 417 suffix plus 97-67 cable clamp
    · Wide selection of shell styles and insert patterns; Resilient inserts
    · Wide selection of connector finishes - cadmium or non-cadmium (environmentally friendly zinc alloy)
    · Solid or split shell construction
    · Solder or crimp termination
    · Non-rotating contacts
    · Medium to heavy weight cylindrical
    · Durable, field-proven design
    · Accessories for both individual wire seal and jacketed cable

Specifications of Aviation Parts:


Product Attribute Attribute Value
Manufacturer: Amphenol
Product Category: Circular MIL Spec Connector
RoHS: N
Number of Positions: 6 Position
Contact Gender: Socket (Female)
Insert Arrangement: 14S-06
Product: Plugs
Shell Size: 14S
Shell Style: In-Line
MIL Type: MIL-DTL-5015
Termination Style: Solder
Mounting Style: Free Hanging
Current Rating: 13 A
Contact Plating: Silver
Contact Material: Copper Alloy
Series: MS 5015
Brand: Amphenol Industrial
Mating Style: Bayonet
Mounting Angle: Straight
Product Type: Circular MIL Spec Connector
Qualification: EREL
Shell Material: Aluminum Alloy
Shell Plating: Olive Drab Zinc
Factory Pack Quantity: 1
Subcategory: Circular Connectors
Tradename: 5015
Voltage Rating: 250 V
Wire Gauge: 22 AWG to 16 AWG
Part # Aliases: 61-168614-06S MS31O6A14S-6S U61-168614-06S
Unit Weight: 1.072328 oz
