Home > products > Aviation Parts > LJT06RT-21-39S(014) Aviation Parts LC Connector Female Socket

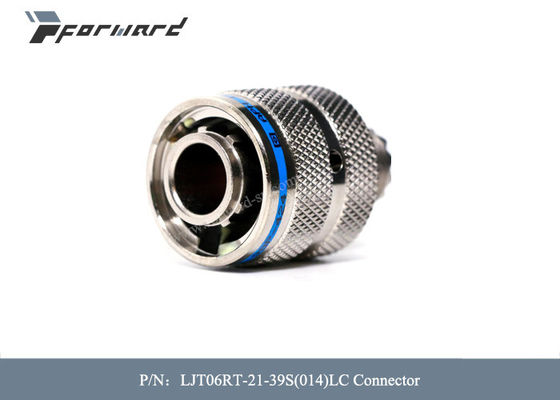

LJT06RT-21-39S(014) Aviation Parts LC Connector Female Socket

Product Details

Model Number: LJT06RT-21-39S(014)LC

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:

Straight Shell Aviation Parts

,

Aviation Parts LC Connector

,

LJT06RT

Mfr:
Amphenol
Product Category:
Circular MIL Spec Connector
Contact Gender:
Socket (Female)
Insert Arrangement::
21-39
Product:
Plugs
Shell Size:
21
Shell Style:
Straight
Termination Style:
Crimp
Mfr:
Amphenol
Product Category:
Circular MIL Spec Connector
Contact Gender:
Socket (Female)
Insert Arrangement::
21-39
Product:
Plugs
Shell Size:
21
Shell Style:
Straight
Termination Style:
Crimp

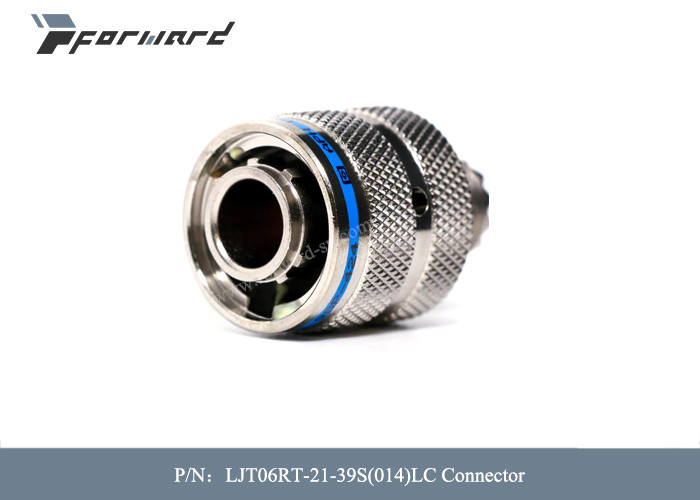

LJT06RT-21-39S(014) Aviation Parts LC Connector Female Socket

                         Aviation Parts LJT06RT-21-39S(014)LC Connector Female Socket







Descriptions of Aviation Parts:


Maximum design flexibility is built into the JT/LJT Series, with a minimum of 2 to a maximum of 128 circuits per connector in a wide variety of contact arrangements. Contacts are available in sizes 8, 10, 12, 16, 20, 22, 22D and 22M with standard 50 micro inch minimum gold plating (100 micro inches optional). All socket contacts are probe proof. Crimp type rear removable contacts are featured in JT-R and LJT-R connectors. Solder termination contacts are also available, as well as PCB, wire wrap, thermocouple, fiber optic, coaxial, triaxial and twinax contact options.


Features of Aviation Parts:





• Lightweight, Space Saving Design

• Contact Protection - 100% scoop-proof LJT design prevents bent pins and short circuits during mating

• Quick Positive Coupling - 3 point bayonet lock system

• Mismating Eliminated - with 5 key/keyway design

• Error Proof Alternate Positioning - insured by different key/ keyway locations

• EMI Shielding - grounding fingers standard in LJT Series; optional in JT Series

• Nine Shell Sizes and a Variety of Shell Styles

• Contact Options - size 8, 10, 12, 16, 20, 22M and 22D Crimp, Solder, PCB, Wire wrap, Coax, Twinax, Triax, Thermocouple, Fiber Optic and Filter

• Fixed Solder Contacts - Amphenol MIL-DTL-38999 Series I LJT and II JT, are available in solder versions as both Commercial and Military qualified to MIL-DTL-27599

• Hermetic - air leakage limited to 1 X 10-7 cm3 per second optional

• “Breakaway” Lanyard Release Style - available in LJT plugs. Provides quick disconnect of the connector plug and receptacle with axial pull on the lanyard. See pages 94-96.

• Inventory Support Commonality - uses standard MIL-DTL-38999 contacts, insert arrangements and application tools.

• RoHS Compliant Product Available - Consult Amphenol Aerospace Operations




Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: Amphenol
Product Category: Circular MIL Spec Connector
Contact Gender: Socket (Female)
Insert Arrangement: 21-39
Product: Plugs
Shell Size: 21
Shell Style: Straight
MIL Type: MIL-DTL-38999 I
Termination Style: Crimp
Mounting Style: Cable
Series: LJT
Brand: Amphenol Aerospace
Mating Style: Threaded
Mounting Angle: Straight
Product Type: Circular MIL Spec Connector
Shell Material: Aluminum
Shell Plating: Cadmium over Nickel
Factory Pack Quantity: 1
Subcategory: Circular Connectors
Tradename: 38999
