MAX3232IDR RS-232 Interface IC Supply Voltage - Max 5.5 V

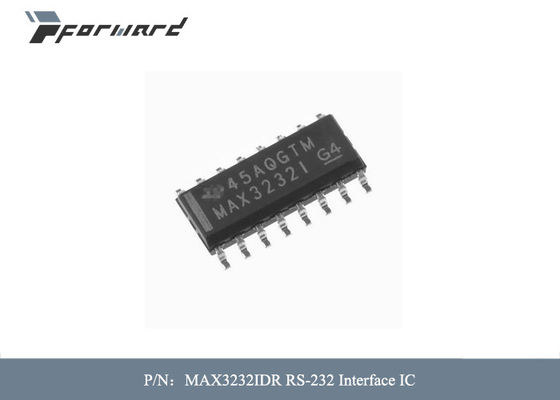

               Aviation Parts MAX3232IDR RS-232 Interface IC Supply Voltage - Max 5.5 V

Descriptions of Aviation Parts:

The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (serial-port connection terminals, including GND). The device meets the requirements of TIA/EIA-232- F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.

Features of Aviation Parts:

• • RS-232 Bus-terminal esd protection exceeds
• ±15 kV using human-body model (HBM)
• • Meets or exceeds the requirements of TIA/
• EIA-232-F and ITU V.28 standards
• • Operates with 3-V to 5.5-V VCC supply
• • Operates up to 250 kbit/s
• • Two drivers and two receivers
• • Low supply current: 300 μA Typical
• • External capacitors: 4 × 0.1 μF
• • Accepts 5-V logic input with 3.3-V supply
• • Alternative high-speed terminal-compatibledevices (1 Mbit/s)
• – SN65C3232 (–40°C to 85°C)
• – SN75C3232 (0°C to 70°C)
