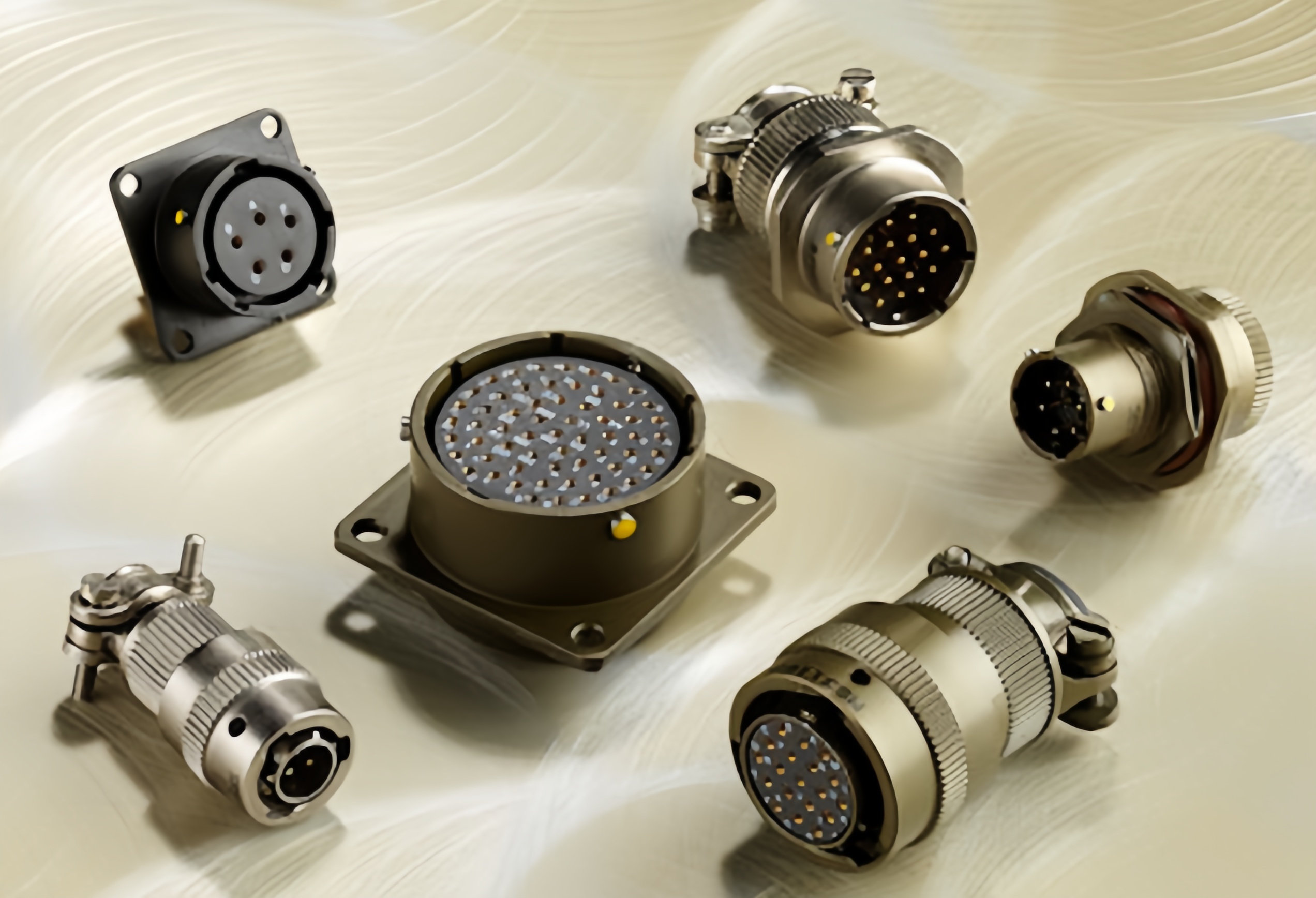

MIL-DTL-26482 Series I Circular Connector Aerospace Bayonet Coupling 26 Pin
| Brand Name | OEM |
|---|---|
| Certification | ISO9001 |
| Model Number | MS3116F20-26S |
| Packaging Details | Anti-static bag with foam cushioning, export-grade reinforced carton |
| Delivery Time | 5-8 weeks |
| Payment Terms | T/T |
Product Details
| Connector Type | MIL-DTL-26482 Series I | Shell Size | 20 |
|---|---|---|---|
| Contact Quantity | 26 | Contact Type | Crimp Socket, Gold Plated |
| Coupling | Bayonet Quick Disconnect | Operating Temperature | -55°C To +125°C |
| Sealing | Environmentally Sealed | Shell Material | Aluminum Alloy, Olive Drab Cadmium Plated |
| Highlight | MIL-DTL-26482 Series I Equivalent,Aerospace Bayonet Coupling Connector,Quick Disconnect Circular Connector |
||
Product Description
MIL-DTL-26482 Series I Circular Connector — Aerospace Grade
Direct equivalent to ITT Cannon, TE Connectivity and Amphenol MIL-DTL-26482 Series I circular connectors. The bayonet coupling design delivers rapid, positive mating and unmating, ideal for aircraft engine and avionics applications.
Key Features
- Bayonet quick-disconnect coupling with visual lock indication
- 26 gold-plated crimp contacts, shell size 20
- Environmentally sealed construction
- Resistant to aviation fuels, hydraulic fluids and vibration
- Operating temperature range from -55°C to +125°C
- Aluminum alloy shell with olive drab cadmium plating
Technical Specifications
- Standard: MIL-DTL-26482 Series I
- Shell Size: 20
- Contact Quantity: 26
- Contact Type: Crimp socket, gold plated
- Dielectric Withstanding Voltage: 1500 V RMS
- Insulation Resistance: 5000 MΩ minimum
- Mating Cycles: 500 minimum
Applications
Aircraft engines, avionics systems, ground support equipment, missile and defense systems.
All connectors are 100% inspected and tested before shipment. ISO 9001:2015 and AS9100D certified manufacturing. Contact us for datasheets and cross-reference assistance.
