Home > products > Laser Rangefinder Module > Eye Safe 15000m Range Finder Module Laser Wavelength 1.54μM

Eye Safe 15000m Range Finder Module Laser Wavelength 1.54μM

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: AT-LRF4515C

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Supply Ability: 1000 sets/years

Get Best Price
Highlight:

15000m Range Finder Module

,

Range Finder Module 1.54um

,

15000m laser distance measurement module

Laser Wavelength:
1.54μm
Maximum Measuring Range:
≥15000m
Minimum Measuring Range:
≤50m
Ranging Accuracy:
≤ 3m
Repetition Frequency:
≥1~ 5Hz
Accurate Rate:
≥ 98%
Beam Angle:
≤0.6mrad
Volume:
≤120mmx83mmx75mm
Weight:
≤450g
Supple Voltage:
28V
Laser Wavelength:
1.54μm
Maximum Measuring Range:
≥15000m
Minimum Measuring Range:
≤50m
Ranging Accuracy:
≤ 3m
Repetition Frequency:
≥1~ 5Hz
Accurate Rate:
≥ 98%
Beam Angle:
≤0.6mrad
Volume:
≤120mmx83mmx75mm
Weight:
≤450g
Supple Voltage:
28V

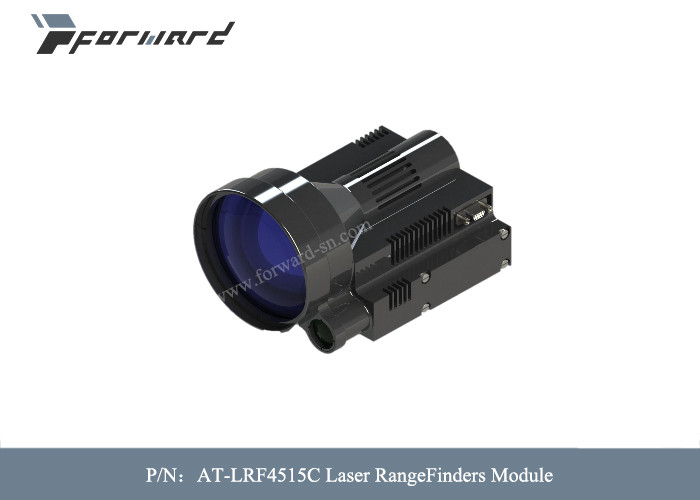

Eye Safe 15000m Range Finder Module Laser Wavelength 1.54μM

Laser RangeFinders Module AT-LRF4515C Eye-Safe ≥15000m Laser Wavelength 1.54μm



Descriptions of Laser RangeFinders Module:



The AT-LRF4515C laser ranging module uses a semiconductor laser, combined with an advanced optical system, high-efficiency drive, and amplifier circuit design. It can realize the first and last target distance measurement, self-inspection information response, fault location mode feedback and other functions, and has a small size. Light weight, high ranging accuracy, convenient operation, good gold adaptability, high reliability, etc.



Features of Laser RangeFinders Module :

  • small and light
  • Hight ranging accuracy
  • Good acclimatization
  • High reliability

Applications of Laser RangeFinders Module:

  • Optical sight equipments
  • Optoelectronic system
  • UAV



Specifications of Laser RangeFinders Module:



Laser Wavelength 1.54μm
Maximum Measuring Range ≥15000m
Minimum Measuring Range ≤50m
Ranging Accuracy ≤ 3m
Repetition Frequency ≥1~ 5Hz
Accurate Rate ≥ 98%
Beam Angle ≤0.6mrad
Volume ≤120mmx83mmx75mm
Weight ≤450g
Supple Voltage 28 V
Operating Temperature -40℃~+55℃

Eye Safe 15000m Range Finder Module  Laser Wavelength 1.54μM 0
