10000m Laser Rangefinder Module Micro Thermal Camera Module 1.54μM

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: AT-LRF2210

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Supply Ability: 1000 sets/years

Get Best Price
Highlight:

10000M Laser Rangefinder Module

,

Laser Rangefinder Module 1Hz

,

micro thermal camera module 1.54μm

Laser Wavelength:
1.54μm
Maximum Measuring Range:
≥10000m
Minimum Measuring Range:
≤80m
Ranging Accuracy:
≤ 2m
Repetition Frequency:
≥1~ 5Hz
Accurate Rate:
≥ 98%
Beam Angle:
≤0.4mrad
Volume:
≤101mmx71mmx53mm
Weight:
≤220g
Supple Voltage:
9~18V
Laser Wavelength:
1.54μm
Maximum Measuring Range:
≥10000m
Minimum Measuring Range:
≤80m
Ranging Accuracy:
≤ 2m
Repetition Frequency:
≥1~ 5Hz
Accurate Rate:
≥ 98%
Beam Angle:
≤0.4mrad
Volume:
≤101mmx71mmx53mm
Weight:
≤220g
Supple Voltage:
9~18V
10000m Laser Rangefinder Module Micro Thermal Camera Module 1.54μM

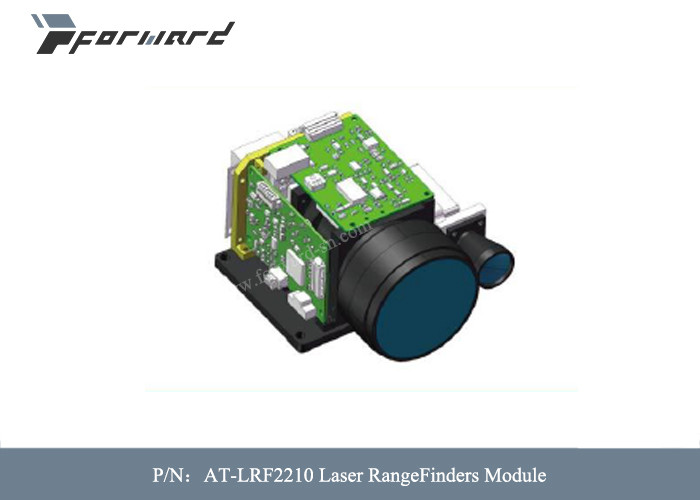

      Laser RangeFinders Module AT-LRF2210 Eye-Safe ≥10000m Laser Wavelength 1.54μm



Descriptions of Laser RangeFinders Module:



The AT-LRF1206A laser ranging module uses a semiconductor laser, combined with an advanced optical system, high-efficiency drive, and amplifier circuit design. It can realize the first and last target distance measurement, self-inspection information response, fault location mode feedback and other functions, and has a small size. Light weight, high ranging accuracy, convenient operation, good gold adaptability, high reliability, etc.



Features of Laser RangeFinders Module:

  • small and light
  • Hight ranging accuracy
  • Good acclimatization
  • High reliability

Applications of Laser RangeFinders Module:

  • Optical sight equipments
  • Optoelectronic system
  • UAV



Specifications of Laser RangeFinders Module:



Laser Wavelength 1.54μm
Maximum Measuring Range ≥10000m
Minimum Measuring Range ≤80m
Ranging Accuracy ≤ 2m
Repetition Frequency ≥1~ 5Hz
Accurate Rate ≥ 98%
Beam Angle ≤0.4mrad
Volume ≤101mm×71mm×53mm
Weight ≤220g
Supple Voltage 9~18 V
Operating Temperature -40℃~+55℃
