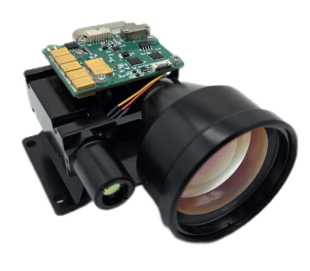

FW-ED12 1535nm Eye-safe Laser Ranging Module
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-ED12 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Wavelength | 1.54μm±0.02μm | Launch Lens Diameter | Φ15mm |
|---|---|---|---|
| Receiver Lens Diameter | Φ50mm | Ranging Accuracy | ±2m |
| Range Resolution | ≤30 M | Divergence Angle | ≤0.3 Mrad |
Product Description
Descriptions of FW-ED12 1535nm Eye-safe Laser Ranging Module
The FW-ED12 laser rangefinder features single-pulse ranging, continuous ranging, distance selection, front and rear target display, self-check function, and an adjustable continuous ranging frequency (1 ~ 10Hz). Equipped with PC host computer software and embedded software, it can be seamlessly integrated into handheld and multifunctional systems. It is widely applied to optoelectronic reconnaissance systems on various platforms, such as ground vehicles, lightweight portable devices, airborne, naval, and space exploration applications.
Specifications of FW-ED12 1535nm Eye-safe Laser Ranging Module
|
Laser Wavelength
|
1.54μm±0.02μm
|
|
Eye Safety
|
Class 1
|
|
Divergence Angle
|
≤0.3 mrad
|
|
Laser Energy
|
≥500 μJ |
|
Launch Lens Diameter
|
Φ15 mm
|
|
Receiver Lens Diameter
|
Φ50 mm
|
| Measuring Range(Reflectance 30%; visibility ≥ 18km.) |
4m×6m objective≥15km
|
|
Minimum Range
|
≤50 m
|
|
Ranging Accuracy
|
±2m
|
|
Ranging Frequency
|
0.5Hz~10Hz
|
|
Number of multi-target detections
|
RS422
|
|
False Alarm Rate
|
≤1%
|
|
Precision Rate
|
≥98%
|
|
Pin-in-lead package model
|
J30J
|
|
Supply Voltage
|
DC 12V
|
|
Standby Power Consumption
|
≤1.2W
|
|
Average power consumption
|
≤2W
|
|
Peak Power Consumption
|
≤3W
|
|
Weight
|
≤400g
|
|
Dimention (L×W×H)
|
125mm×85mm×58.5mm
|
|
Operation Temperature
|
-40~＋70℃
|
|
Storage Temperature
|
-55~＋75℃
|
|
Impact Resistance
|
Meet the MIL-STD-810G testing standard
|
|
Vibration Resistance
|
Meet the MIL-STD-810G testing standard
|
Outline Dimension(mm)
