FW-ED06 1535nm Eye-safe Laser Ranging Module
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-ED06 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Wavelength | 1535±5nm | Launch Lens Diameter | Φ12mm |
|---|---|---|---|
| Receiver Lens Diameter | Φ25mm | Ranging Accuracy | ±2m |
| Range Resolution | ≤50 M | Divergence Angle | ≤0.3 Mrad |
Product Description

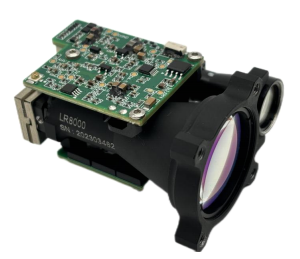

Descriptions of FW-ED06 1535nm Eye-safe Laser Ranging Module
The FW-ED06 eye-safe ranging module is developed by our company based on the
self-developed 1535nm erbium glass laser. It belongs to Class 1 eye-safe products. The product adopts multi-pulse ranging technology, and the maximum ranging distance can reach 10 km. It supports power supply via UART (TTL_3.3V), and has the advantages of low power consumption, stable operation, small size, and light weight. It is widely applied in various fields such as security monitoring, road monitoring, robotic arms, night vision, unmanned aerial vehicles (UAVs), gun sights, golf, outdoor hunting, optoelectronic pods, infrared thermal imaging, engineering surveying, intelligent grain storage bins, etc.
Specifications of FW-ED06 1535nm Eye-safe Laser Ranging Module
|
Laser Wavelength
|
1535±5nm
|
|
Eye Safety
|
Class 1
|
|
Divergence Angle
|
≤0.3mrad
|
|
Laser Energy
|
≥200 μJ |
|
Launch Lens Diameter
|
Φ12mm
|
|
Receiver Lens Diameter
|
Φ25mm
|
| Measuring Range(Reflectance 30%; visibility ≥ 5km.) |
NATO objective(2.3m×2.3m) ≥6000m
Measuring human target(0.5m×1.7m) ≥1200m
|
|
Minimum Range
|
≤50 m
|
|
Ranging Accuracy
|
±2m
|
|
Ranging Frequency
|
1Hz ~10Hz
|
|
Number of multi-target detections
|
Up to 3 targets
|
|
False Alarm Rate
|
≤1%
|
|
Precision Rate
|
≥98%
|
|
Pin-in-lead package model
|
A1257WR-S-6P
|
|
Supply Voltage
|
DC 4.5-12 V
|
|
Standby Power Consumption
|
≤1mW
|
|
Average power consumption
|
≤4 W @10 Hz
|
|
Peak Power Consumption
|
≤14 W @12 V
|
|
Weight
|
≤58±1g
|
|
Dimention (L×W×H)
|
65×48×32mm
|
|
Operation Temperature
|
-40~＋70℃
|
|
Storage Temperature
|
-55~＋75℃
|
|
Impact Resistance
|
Meet the MIL-STD-810G testing standard
|
|
Vibration Resistance
|
Meet the MIL-STD-810G testing standard
|
Outline Dimension(mm)
