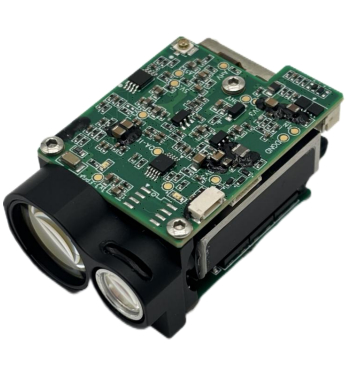

FW-ED04 1535nm Eye-safe Laser Ranging Module
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-ED04 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Wavelength | 1535±5nm | Launch Lens Diameter | Φ8mm |
|---|---|---|---|
| Receiver Lens Diameter | Φ16mm | Ranging Accuracy | ±2m |
| Range Resolution | ≤20 M | Divergence Angle | ≤0.6 Mrad |
Product Description
Descriptions of FW-ED04 1535nm Eye-safe Laser Ranging Module
The FW-ED04 eyesafe laser rangefinder module from ERDI TECH uses a self-developed 1535nm Diode Pump Solid State microchip laser. It offers NATO target ranging of 2.3m×2.3m reaching ≥4km, in a compact size of ≤48×30.5×21mm and ≤32g weight. Features include stable laser measurement, self-testing, temperature reporting, three-target ranging, pre/post-measurement target indication, single/continuous ranging, baud rate setting, laser launch tracking, and serial port update support. Its versatility suits it for laser distance measurement, UAS, optical pods, and boundary monitoring.
Specifications of FW-ED04 1535nm Eye-safe Laser Ranging Module
|
Laser Wavelength
|
1535±5nm
|
|
Eye Safety
|
Class 1
|
|
Divergence Angle
|
≤0.6mrad
|
|
Laser Energy
|
≥200 μJ |
|
Launch Lens Diameter
|
Φ8mm
|
|
Receiver Lens Diameter
|
Φ16mm
|
| Measuring Range(Reflectance 30%; visibility ≥ 5km.) |
NATO objective(2.3m×2.3m) ≥4000m
Measuring human target(0.5m×1.7m) ≥1200m
|
|
Minimum Range
|
≤15 m
|
|
Ranging Accuracy
|
±2m
|
|
Ranging Frequency
|
Single, 1Hz ~10Hz
|
|
Number of multi-target detections
|
Up to 3 targets
|
|
False Alarm Rate
|
≤1%
|
|
Precision Rate
|
≥98%
|
|
Pin-in-lead package model
|
FWF08002-S06B13W5M
|
|
Supply Voltage
|
DC 3~5 V
|
|
Standby Power Consumption
|
≤1mW
|
|
Average power consumption
|
≤2.5 W @10 Hz
|
|
Peak Power Consumption
|
≤7 W @12 V
|
|
Weight
|
≤32±1 g
|
|
Dimention (L×W×H)
|
48×30.5×21mm
|
|
Operation Temperature
|
-40~＋70℃
|
|
Storage Temperature
|
-55~＋75℃
|
|
Impact Resistance
|
Meet the MIL-STD-810G testing standard
|
|
Vibration Resistance
|
Meet the MIL-STD-810G testing standard
|
Outline Dimension(mm)
