Anti Drone System Portable drone detection and positioning equipment FW-LY-PRS5000P
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-LY-PRS5000P |
| Minimum Order Quantity | 1 set |
| Packaging Details | Standard Package |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description

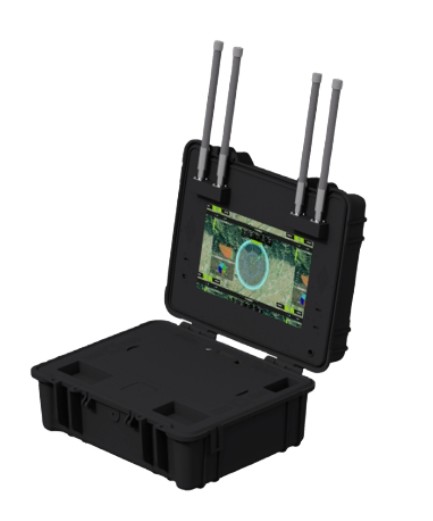

Anti Drone System Portable drone detection and positioning equipment FW-LY-PRS5000P
Descriptions of Portable drone detection and positioning equipment FW-LY-PRS5000P
Portable drone detection and positioning equipment FW-LY-PRS5000P is a set of long-distance detection and positioning equipment integrating drone detection and positioning, drone flight path display, drone pilot detection and positioning, black and white list, etc. Through the in-depth parsing of drone signals, this equipment can accurately detect the SN code, model, position, track, time, distance and other relevant information of all drones within the warning range and the corresponding pilot information. The device can accurately detect the SN code, model, location, trajectory, time, distance and other relevant information of all UAVs within the warning range, as well as the relevant information of the corresponding UAV pilot.
The device is applicable to all kinds of civil and military scenarios that have the need for drone detection and countermeasures in the airspace, and has the features of quick response, mobile deployment, and is not restricted by network conditions.
Features of Portable drone detection and positioning equipment FW-LY-PRS5000P
Precise detection and early warning
Drone trajectory tracking
Flyer Positioning
Specifications of Portable drone detection and positioning equipment FW-LY-PRS5000P
| working hours | Continuous operating time ≤ 4 hours with built-in battery |
| Detection and identification of drone types | DJI,Autel , Feimi, Dahua, Zendi, Haoxiang and other drones |
| Locatable drone types | DJI Royal, Air, Mini, FPV, Avata Series |
| operating mode | With spectrum detection |
| sizes | 510mm*425mm*240mm (L*W*H) |
| Detection Feedback | ≤5km |
| Detection Feedback | When a drone is detected, the device emits an audible alert accompanied by a flashing screen. |
| Detecting Frequency Bands | ISM 2.4G (2377-2562); ISM 5.8G (5717-5852 MHz); 900-950 MHz; GNSS L1 1.5G (1537-1625 MHz) |
| screen size | 13.3 inches (1920*1280) |
| operating temperature | -20~65°C |
| Weight | ≤20Kg (including battery, antenna, charger) |
| Power supply method | Built-in lithium battery |
| Power Consumption | ≤150W |
| protection class | IP65 |
