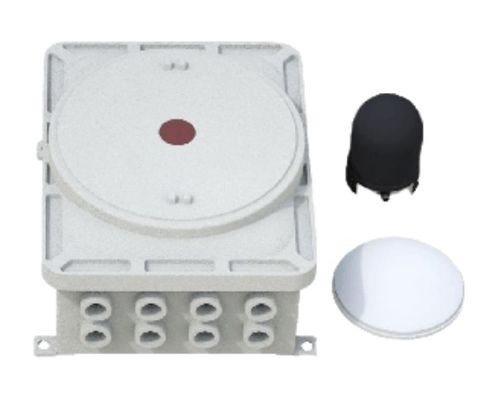

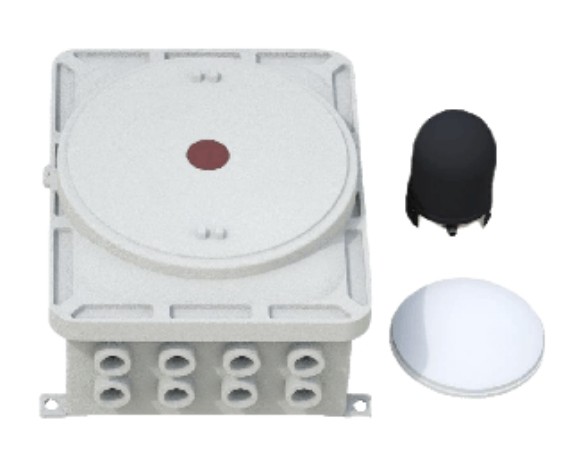

Anti Drone System (Explosion-proof Version) | Countermeasure Series
Descriptions of Anti Drone System (Explosion-proof Version)
FW-XD-TLN1000 (explosion-proof version) can achieve the function of repelling or area denial by regenerating the satellite navigation spoofing signals in not less than two frequency bands and deceptively interfering with the satellite navigation coordinate information received by UAVs using satellite navigation and positioning.
Features of Anti Drone System (Explosion-proof Version)
Deceptive Jamming
Very low radiated power
omni-directional
Direction of Dispersion
High explosion protection
Specifications of Anti Drone System (Explosion-proof Version)
| Supported Frequency Bands | GPS L1/GLONASS L1 |
| signal power | ≤10dBm |
| action distance | ≥500m |
| Continuous autonomous working capacity | Autonomous and unattended operation for 24 hours |
| Signalling time | <3s |
| Signal intrusion time | <10s |
| active airspace | Full 360° airspace |
| waterproof rating | IP66 |
| Explosion-proof grade | Ex d IIC T6 Gb |
| operating temperature | -40°C~+70°C |
| Power Consumption | ≤30w |
| Crackdown strategy support | Directed displacement, area denial |
| Product weight | <16kg |
| Product Size | 370mm×300mm×192mm |
