Integrated Reconnaissance And Attack Of Anti-Drone System Explosion Proof

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: FW- AT-TLN1000D

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Standard Package

Payment Terms: L/C, T/T

Supply Ability: 100 pcs/year

Get Best Price
Highlight:

Explosion Proof Anti UAV System

,

Reconnaissance And Attack Anti Drone Systems

,

1500m Anti Drone Device

Signal Transmission Power:
≤10dBm
Action Distance:
Detection: 1500m; Counter: ≥500m
Signal Validity Time:
< 3s
Signal Transmission Power:
≤10dBm
Action Distance:
Detection: 1500m; Counter: ≥500m
Signal Validity Time:
< 3s

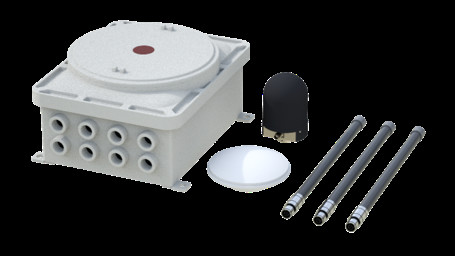

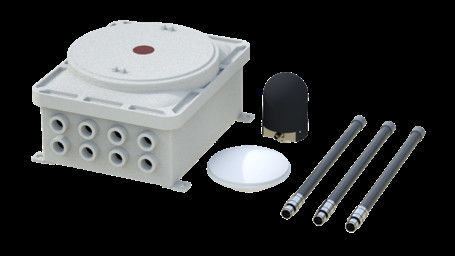

Integrated Reconnaissance And Attack Of Anti-Drone System Explosion Proof

Explosion-proof version of integrated reconnaissance and attack of anti-drone system    Intergrated series



Descriptions of anti-drone system Portable series

Based on advanced cognitive radio technology, passive detection is used to detect and accurately identify the drone from a distance (" black and white list "), and navigation decoy technology is used to deceive the satellite navigation coordinate information received by the drone using satellite navigation positioning, so as to achieve the effect of combating unmanned black flight.



Features of anti-drone system Portable series

Supports regular mode and monitoring mode.



Specifications of anti-drone system Portable series

Support frequency band detection: 2.4G/5.8G;
Counter: GPS L1/GLONASS L1
Signal transmission power ≤10dBm
Action distance detection: 1500m; Counter: ≥500m
Continuous autonomous working capability can operate unattended autonomously for 24 hours
The attack strategy support directional drive and area denial
Supported Mode Normal mode (24-hour active defense)
Monitoring mode (Detect before attack)
Signal validity time < 3s
The signal intrusion time < 10s
Operating airspace 360° whole airspace
Waterproof rating IP66
Explosion-proof class Ex d IIC T6 Gb
