FW-40 UAV Aircraft Drone Automated Agricultural Sprayer 20 Kg

Product Details

Place of Origin: CHINA

Brand Name: Forward

Model Number: FW-40

Payment & Shipping Terms

Minimum Order Quantity: 1 sets

Packaging Details: Standard Package

Payment Terms: L/C, T/T

Supply Ability: 100 pcs/year

Get Best Price
Highlight:

Automated Agricultural Sprayer uav aircraft drone

,

uav aircraft drone 20 kg

FW-40 UAV Aircraft Drone Automated Agricultural Sprayer 20 Kg

FW-40  Automated Agricultural Sprayer Drone

Description of FW-40 Automated Agricultural Sprayer Drone

This plant protection drone is equipped with a plant protection flight control and agricultural intelligent data processing platform, as well as a dual pump accurate metering spraying system, combined with FPV, obstacle avoidance and other auxiliary operating systems, which can realize accurate plant protection operations and make plant protection operations simple and safe. The new TiA series flight control system developed based on the second-generation flight control technology architecture is safe and reliable, optimized for the plant protection industry to improve operational efficiency and realize intelligent drone plant protection operations.

Features of FW-40 Automated Agricultural Sprayer Drone

·Support fully autonomous flight, AB point flight and remote control flight

·Real-time height, speed, satellite data feedback and reporting function

· Good stability and drop resistance

·Remote control with screen, real-time image transmission from the first perspective

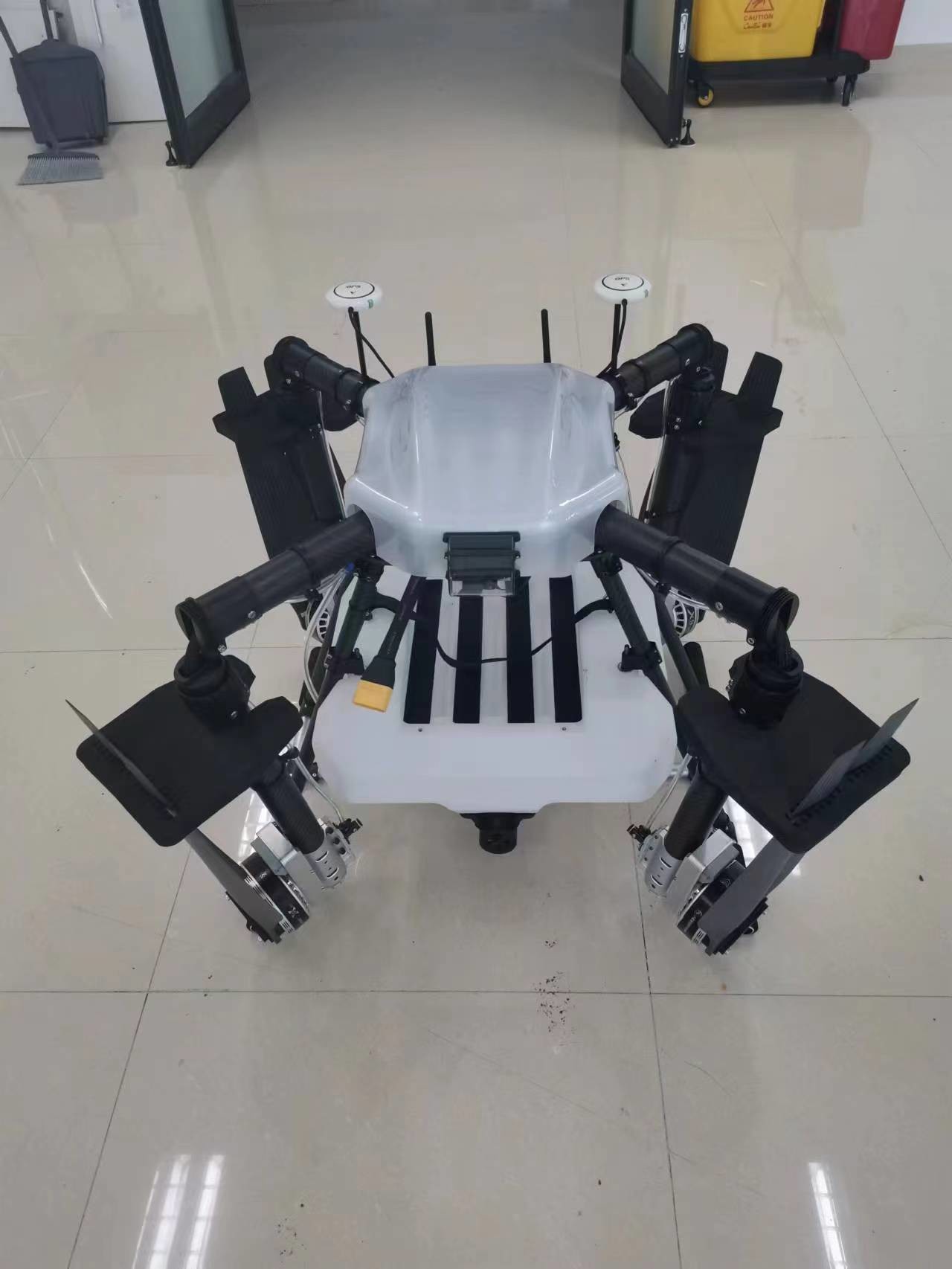

·Foldable design of fuselage and blades, easy to carry

·Dual channel fast charger





Specifications of FW-40 Automated Agricultural Sprayer Drone



Product number FW40
empty weight 14.KG
Product expanded size 2390mm*600mm
wheelbase 1500mm
Product folded size 780mm*780mm*600mm
Maximum take-off load 22kg
battery life 15-20 min
flight speed 5- 10 m/s
battery capacity 16000 mA
charging time 30-40 min
Operating Voltage 44.4v
Working current 0- 100A
spray type Pressure nozzle
Operating temperature 0-45°
remote control distance 2km
Control System Large screen handheld ground station all-in-one
transmission frequency 2.4G
Maximum wind resistance 6 wind
The package includes: UAV*1, battery*2, dual charger*1, obstacle avoidance radar*1, inking device*1, flight case*1, remote control with screen*1, PTZ camera*1, tools *1
