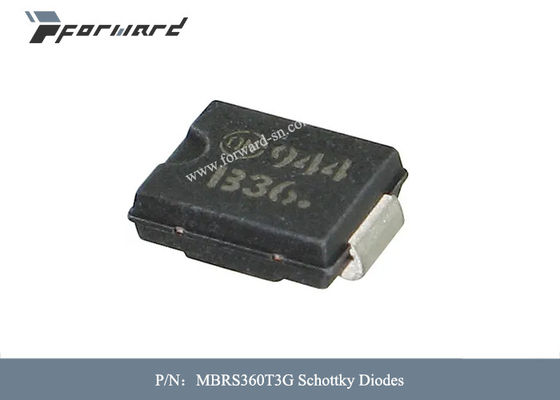

SMD Mounting MBRS360T3G 4A Schottky Diodes If - Forward Current

Product Details

Model Number: MBRS360T3G

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Get Best Price
Highlight:

SMD Mounting schottky diodes

,

4A schottky diodes

,

MBRS360T3G

Mfr:
Onsemi
Product Category:
Schottky Diodes & Rectifiers
Product::
Schottky Diodes
Mounting Style:
SMD/SMT
Package / Case:
SMA (DO-214AC)
Configuration:
Single
If - Forward Current:
4 A
Vrrm - Repetitive Reverse Voltage::
60 V
Vf - Forward Voltage:
740 MV
Ifsm - Forward Surge Current:
125 A
Mfr:
Onsemi
Product Category:
Schottky Diodes & Rectifiers
Product::
Schottky Diodes
Mounting Style:
SMD/SMT
Package / Case:
SMA (DO-214AC)
Configuration:
Single
If - Forward Current:
4 A
Vrrm - Repetitive Reverse Voltage::
60 V
Vf - Forward Voltage:
740 MV
Ifsm - Forward Surge Current:
125 A
SMD Mounting MBRS360T3G 4A Schottky Diodes If - Forward Current

                       Aviation Parts MBRS360T3G Schottky Diodes If - Forward Current 4 A





Descriptions of Aviation Parts:



This device employs the Schottky Barrier principle in a large area metal−to−silicon power diode. State−of−the−art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes, in surface mount applications where compact size and weight are critical to the system.



Features of Aviation Parts:

  •  Small Compact Surface Mountable Package with J−Bend Leads
  •  Rectangular Package for Automated Handling
  •  Highly Stable Oxide Passivated Junction
  •  Excellent Ability to Withstand Reverse Avalanche Energy Transients
  •  Guard−Ring for Stress Protection
  •  NRVBS Prefix for Automotive and Other Applications Requiring
  • Unique Site and Control Change Requirements; AEC−Q101
  • Qualified and PPAP Capable*
  •  These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: onsemi
Product Category: Schottky Diodes & Rectifiers
RoHS: Details
Product: Schottky Diodes
Mounting Style: SMD/SMT
Package / Case: SMC (DO-214AB)
Configuration: Single
Technology: Si
If - Forward Current: 4 A
Vrrm - Repetitive Reverse Voltage: 60 V
Vf - Forward Voltage: 740 mV
Ifsm - Forward Surge Current: 125 A
Ir - Reverse Current: 150 uA
Minimum Operating Temperature: - 65 C
Maximum Operating Temperature: + 175 C
Series: MBRS360
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: onsemi
Height: 2.13 mm
Length: 6.86 mm
Product Type: Schottky Diodes & Rectifiers
Factory Pack Quantity: 2500
Subcategory: Diodes & Rectifiers
Termination Style: SMD/SMT
Type: Schottky Diode
Width: 5.84 mm
Unit Weight: 0.010582 oz
