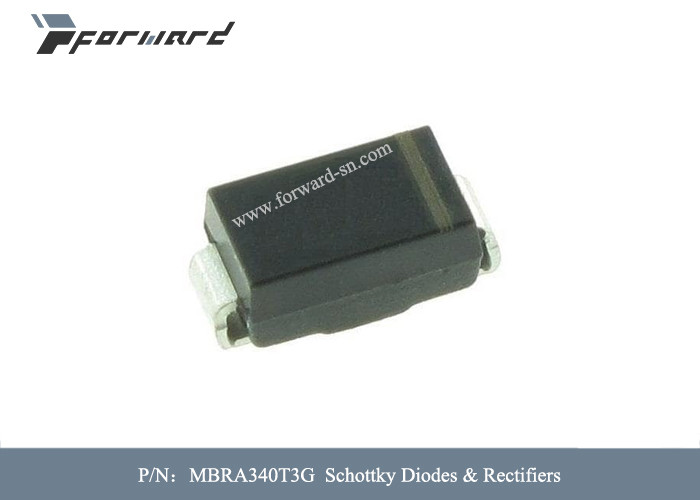

MBRA340T3G Aviation Parts Schottky Diodes And Rectifiers 3A
| Model Number | MBRA340T3G |
|---|---|
| Price | Negotiable |
| Packaging Details | boxes |
| Delivery Time | 12-14 weeks |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mfr | Onsemi | Product Category | Schottky Diodes & Rectifiers |
|---|---|---|---|
| Product | Schottky Diodes | Mounting Style | SMD/SMT |
| Package / Case | SMA (DO-214AC) | Configuration | Single |
| If - Forward Current | 500 MA | Vrrm - Repetitive Reverse Voltage | 3 A |
| Vf - Forward Voltage | 450 MV | Ifsm - Forward Surge Current | 100 A |
| Highlight | MBRA340T3G Aviation Parts,Aviation Parts VF 450mV,schottky diodes and rectifiers 3A |
||
Product Description
Aviation Parts MBRA340T3G Schottky Diodes & Rectifiers If - Forward Current 3 A
Descriptions of Aviation Parts:
Employing the Schottky Barrier principle in a large area metal−to−silicon power diode. State of the art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity diodes in surface mount applications where compact size and weight are critical to the system.
Features of Aviation Parts:
- Small Compact Surface Mountable Package with J−Bent Leads
- Rectangular Package for Automated Handling
- Highly Stable Oxide Passivated Junction
- Very Low Forward Voltage Drop
- Guardring for Stress Protection
- NRVBA Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable*
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Specifications of Aviation Parts:
| Product Attribute | Attribute Value |
| Manufacturer: | onsemi |
| Product Category: | Schottky Diodes & Rectifiers |
| RoHS: | Details |
| Product: | Schottky Diodes |
| Mounting Style: | SMD/SMT |
| Package / Case: | SMA (DO-214AC) |
| Configuration: | Single |
| Technology: | Si |
| If - Forward Current: | 3 A |
| Vrrm - Repetitive Reverse Voltage: | 40 V |
| Vf - Forward Voltage: | 450 mV |
| Ifsm - Forward Surge Current: | 100 A |
| Ir - Reverse Current: | 300 uA |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 150 C |
| Series: | MBRA340 |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Brand: | onsemi |
| Height: | 2 mm |
| Length: | 4.32 mm |
| Product Type: | Schottky Diodes & Rectifiers |
| Factory Pack Quantity: | 5000 |
| Subcategory: | Diodes & Rectifiers |
| Termination Style: | SMD/SMT |
| Type: | Schottky Diode |
| Width: | 2.6 mm |
| Unit Weight: | 0.004586 oz |
