Aviation Part 20V MBR0520LT1G Schottky Rectifier Diode If 500mA

Model Number MBR0520LT1G
Price Negotiable
Packaging Details boxes
Delivery Time 12-14 weeks
Payment Terms L/C, T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mfr Onsemi Product Category Schottky Diodes & Rectifiers
Product Schottky Diodes Mounting Style SMD/SMT
Package / Case SOD-123-2 Configuration Single
If - Forward Current 500 MA Vrrm - Repetitive Reverse Voltage 20 V
Vf - Forward Voltage 385 MV Ifsm - Forward Surge Current 5.5 A
Highlight

20V schottky rectifier diode

,

schottky rectifier diode 500mA

,

MBR0520LT1G

Leave a Message
Product Description

                   Aviation Parts MBR0520LT1G Schottky Diodes If - Forward Current 500 mA





Descriptions of Aviation Parts:



The Schottky Power Rectifier employs the Schottky Barrier principle with a barrier metal that produces optimal forward voltage drop−reverse current tradeoff. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. This package provides an alternative to the leadless 34 MELF style package.



Features of Aviation Parts:

  • Guardring for Stress Protection
  • Very Low Forward Voltage (0.38 V Max @ 0.5 A, 25 C)
  • 125° C Operating Junction Temperature
  • Unique Site and Control Change Requirements

    All Packages are Pb−Free

  • Epoxy Meets UL 94 V−0 @ 0.125 in
  • Package Designed for Optimal Automated Board Assembly
  • AEC−Q101 Qualified and PPAP Capable
  • SBR8 Prefix for Automotive and Other Applications Requiring

Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: onsemi
Product Category: Schottky Diodes & Rectifiers
RoHS: Details
Product: Schottky Diodes
Mounting Style: SMD/SMT
Package / Case: SOD-123-2
Configuration: Single
Technology: Si
If - Forward Current: 500 mA
Vrrm - Repetitive Reverse Voltage: 20 V
Vf - Forward Voltage: 385 mV
Ifsm - Forward Surge Current: 5.5 A
Ir - Reverse Current: 250 uA
Minimum Operating Temperature: - 65 C
Maximum Operating Temperature: + 125 C
Series: MBR0520L
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: onsemi
Height: 1.12 mm
Length: 2.69 mm
Product Type: Schottky Diodes & Rectifiers
Factory Pack Quantity: 3000
Subcategory: Diodes & Rectifiers
Termination Style: SMD/SMT
Type: Schottky Diode
Width: 1.6 mm
Part # Aliases: MBR0520LT3G
Unit Weight: 0.001058 oz

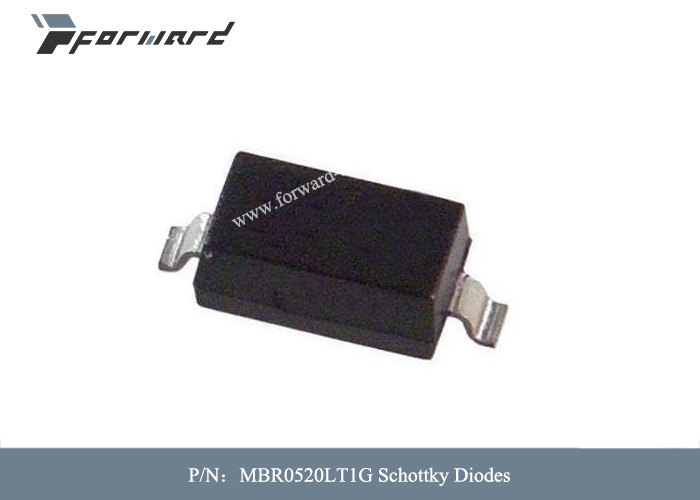

Aviation Part 20V  MBR0520LT1G Schottky Rectifier Diode If  500mA 0
