MAX7219ENG+ LED Display Drivers Supply 330MA Aviation Part

Product Details

Model Number: MAX7219ENG+ LED Display Drivers

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Get Best Price
Highlight:

LED Display Drivers 330MA

,

LED Display Drivers 5.5V

,

MAX7219ENG

Mfr:
Analog Devices Inc.
Product Category:
LED Display Drivers
Series::
MAX7219
Number Of Digits::
8
Number Of Segments::
64
Mounting Style::
Through Hole
Operating Supply Voltage::
4 V To 5.5 V
Supply Current - Max::
330 MA
Minimum Operating Temperature:
- 40 C
Maximum Operating Temperature:
+ 85 C
Mfr:
Analog Devices Inc.
Product Category:
LED Display Drivers
Series::
MAX7219
Number Of Digits::
8
Number Of Segments::
64
Mounting Style::
Through Hole
Operating Supply Voltage::
4 V To 5.5 V
Supply Current - Max::
330 MA
Minimum Operating Temperature:
- 40 C
Maximum Operating Temperature:
+ 85 C

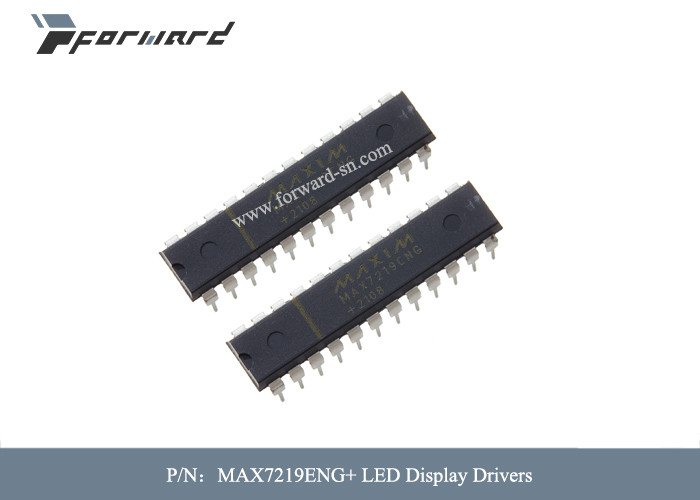

MAX7219ENG+ LED Display Drivers Supply 330MA Aviation Part

           Aviation Parts MAX7219ENG+ LED Display Drivers Supply Current - Max 330 mA





Descriptions of Aviation Parts:



The MAX7219/MAX7221 are compact, serial input/ output common-cathode display drivers that interface microprocessors (μPs) to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs. Included on-chip are a BCD code-B decoder, multiplex scan circuitry, segment and digit drivers, and an 8x8 static RAM that stores each digit. Only one external resistor is required to set the segment current for all LEDs. The MAX7221 is compatible with SPI™, QSPI™, and MICROWIRE™, and has slew-rate-limited segment drivers to reduce EMI.



A convenient 4-wire serial interface connects to all common μPs. Individual digits may be addressed and updated without rewriting the entire display. The MAX7219/MAX7221 also allow the user to select code-B decoding or no-decode for each digit.



The devices include a 150μA low-power shutdown mode, analog and digital brightness control, a scan-limit register that allows the user to display from 1 to 8 digits, and a test mode that forces all LEDs on.



For applications requiring 3V operation or segment blinking, refer to the MAX6951 data sheet.



Features of Aviation Parts:

  • ● 10MHz Serial Interface

    ● Individual LED Segment Control

    ● Decode/No-Decode Digit Selection

    ● 150μA Low-Power Shutdown (Data Retained)

    ● Digital and Analog Brightness Control

    ● Display Blanked on Power-Up

    ● Drive Common-Cathode LED Display

    ● Slew-Rate Limited Segment Drivers for Lower EMI (MAX7221)

    ● SPI, QSPI, MICROWIRE Serial Interface (MAX7221)

    ● 24-Pin DIP and SO Packages



Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: Analog Devices Inc.
Product Category: LED Display Drivers
RoHS: Details
Series: MAX7219
Number of Digits: 8
Number of Segments: 64
Mounting Style: Through Hole
Package / Case: PDIP-Narrow-24
Operating Supply Voltage: 4 V to 5.5 V
Supply Current - Max: 330 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Packaging: Tube
Brand: Analog Devices / Maxim Integrated
Height: 4.45 mm
High Level Output Current: - 2 mA
Length: 32.13 mm
Low Level Output Current: 5 mA
Pd - Power Dissipation: 1066 mW
Product: LED Display Drivers
Product Type: LED Display Drivers
Factory Pack Quantity: 15
Subcategory: Driver ICs
Width: 7.87 mm
