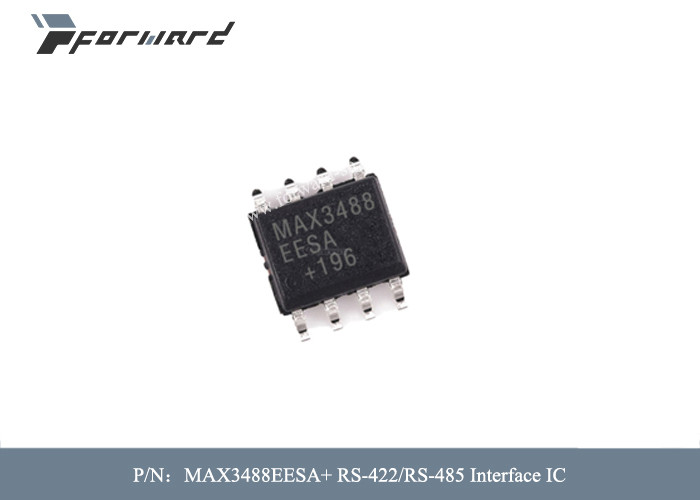

MAX3488EESA+ Aviation Parts RS-422 RS-485 Supply 3.3V

Product Details

Model Number: MAX3488EESA+ RS-422/RS-485

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Get Best Price
Highlight:

Aviation Parts 3.3V

,

Aviation Parts RS-485

,

MAX3488EESA

Mfr:
Analog Devices Inc.
Product Category:
RS-422/RS-485 Interface IC
Mounting Style:
SMD/SMT
Package / Case:
SOIC-8
Number Of Drivers::
1 Driver
Number Of Receivers:
1 Receiver
Data Rate:
250 Kb/s
Supply Voltage - Max:
3.3 V
Supply Voltage - Min:
3.3 V
Minimum Operating Temperature::
- 40 C
Mfr:
Analog Devices Inc.
Product Category:
RS-422/RS-485 Interface IC
Mounting Style:
SMD/SMT
Package / Case:
SOIC-8
Number Of Drivers::
1 Driver
Number Of Receivers:
1 Receiver
Data Rate:
250 Kb/s
Supply Voltage - Max:
3.3 V
Supply Voltage - Min:
3.3 V
Minimum Operating Temperature::
- 40 C
MAX3488EESA+ Aviation Parts RS-422 RS-485 Supply 3.3V

                 Aviation Parts MAX3488EESA+ RS-422/RS-485 Supply Voltage - Max 3.3 V





Descriptions of Aviation Parts:



Devices in the MAX3483E family (MAX3483E/MAX3485E/ MAX3486E/MAX3488E/MAX3490E/MAX3491E) are ±15kV ESD-protected, +3.3V, low-power transceivers for RS-485 and RS-422 communications. Each device contains one driver and one receiver. The MAX3483E and MAX3488E feature slew-rate-limited drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission at data rates up to 250kbps. The partially slew-rate-limited MAX3486E transmits up to 2.5Mbps. The MAX3485E, MAX3490E, and MAX3491E transmit at up to 12Mbps.



All devices feature enhanced electrostatic discharge (ESD) protection. All transmitter outputs and receiver inputs are protected to ±15kV using IEC 1000-4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact Discharge, and ±15kV using the Human Body Model.



Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if both inputs are open circuit.



The MAX3488E, MAX3490E, and MAX3491E feature fullduplex communication, while the MAX3483E, MAX3485E, and MAX3486E are designed for half-duplex communication.



Features of Aviation Parts:

  • ● ESD Protection for RS-485 I/O Pins
  • • ±15kV—Human Body Model
  • • ±8kV—IEC 1000-4-2, Contact Discharge
  • • ±15kV—IEC 1000-4-2, Air-Gap Discharge
  • ● Operate from a Single +3.3V Supply— No Charge Pump Required
  • ● Interoperable with +5V Logic
  • ● Guaranteed 12Mbps Data Rate (MAX3485E/MAX3490E/MAX3491E)
  • ● Slew-Rate Limited for Errorless Data Transmission (MAX3483E/MAX3488E)
  • ● 2nA Low-Current Shutdown Mode (MAX3483E/MAX3485E/MAX3486E/MAX3491E)
  • ● -7V to +12V Common-Mode Input Voltage Range
  • ● Full-Duplex and Half-Duplex Versions Available
  • ● Industry-Standard 75176 Pinout (MAX3483E/MAX3485E/MAX3486E)
  • ● Current-Limiting and Thermal Shutdown for Driver Overload Protection



Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: Analog Devices Inc.
Product Category: RS-422/RS-485 Interface IC
RoHS: Details
Series: MAX3488E
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Function: Transceiver
Number of Drivers: 1 Driver
Number of Receivers: 1 Receiver
Data Rate: 250 kb/s
Supply Voltage - Max: 3.3 V
Supply Voltage - Min: 3.3 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Packaging: Tube
Brand: Analog Devices / Maxim Integrated
Duplex: Full Duplex
ESD Protection: 15 kV
Height: 1.5 mm
Input Voltage: 7 V to 12 V
Length: 5 mm
Operating Supply Current: 1.1 mA
Operating Supply Voltage: 3.3 V
Output Current: 20 uA
Output Voltage: 3 V
Pd - Power Dissipation: 471 mW
Product Type: RS-422/RS-485 Interface IC
Propagation Delay Time: 930 ns, 75 ns
Factory Pack Quantity: 100
Subcategory: Interface ICs
Width: 4 mm
Part # Aliases: MAX3488E
Unit Weight: 0.019048 oz
