MAX3232EEAE+ RS-232 Aviation Parts Interface IC Supply Voltage - Max 5.5 V

Model Number MAX3232EEAE+ RS-232
Price Negotiable
Packaging Details boxes
Delivery Time 12-14 weeks
Payment Terms L/C, T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mfr Analog Devices Inc. Product Category RS-232 Interface IC
Mounting Style SMD/SMT Package / Case SSOP-16
Number Of Drivers 2 Driver Number Of Receivers 2 Receiver
Data Rate 250 Kb/s Supply Voltage - Max 5.5 V
Supply Voltage - Min 3 V Minimum Operating Temperature - 40 C
Highlight

RS-232 Aviation Parts

,

Aviation Parts 5.5V

,

MAX3232EEAE

Leave a Message
Product Description

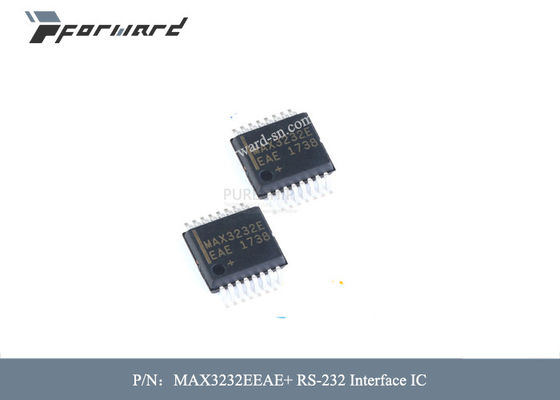

           Aviation Parts MAX3232EEAE+ RS-232 Interface IC Supply Voltage - Max 5.5 V





Descriptions of Aviation Parts:



The MAX3222E/MAX3232E/MAX3237E/MAX3241E/ MAX3246E +3.0V-powered EIA/TIA-232 and V.28/V.24 communications interface devices feature low power consumption, high data-rate capabilities, and enhanced electrostatic-discharge (ESD) protection. The enhanced ESD structure protects all transmitter outputs and receiver inputs to ±15kV using IEC 1000-4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact Discharge (±9kV for MAX3246E), and ±15kV using the Human Body Model. The logic and receiver I/O pins of the MAX3237E are protected to the above standards, while the transmitter output pins are protected to ±15kV using the Human Body Model.



A proprietary low-dropout transmitter output stage delivers true RS-232 performance from a +3.0V to +5.5V power supply, using an internal dual charge pump. The charge pump requires only four small 0.1μF capacitors for operation from a +3.3V supply. Each device guarantees operation at data rates of 250kbps while maintaining RS-232 output levels. The MAX3237E guarantees operation at 250kbps in the normal operating mode and 1Mbps in the MegaBaud™ operating mode, while maintaining RS-232-compliant output levels.



The MAX3222E/MAX3232E have two receivers and two transmitters. The MAX3222E features a 1μA shutdown mode that reduces power consumption in battery-powered portable systems. The MAX3222E receivers remain active in shutdown mode, allowing monitoring of external devices while consuming only 1μA of supply current. The MAX3222E and MAX3232E are pin, package, and functionally compatible with the industry-standard MAX242 and MAX232, respectively.



The MAX3241E/MAX3246E are complete serial ports (three drivers/five receivers) designed for notebook and subnotebook computers. The MAX3237E (five drivers/ three receivers) is ideal for peripheral applications that require fast data transfer. These devices feature a shutdown mode in which all receivers remain active, while consuming only 1μA (MAX3241E/MAX3246E) or 10nA (MAX3237E).



The MAX3222E, MAX3232E, and MAX3241E are available in space-saving SO, SSOP, TQFN and TSSOP packages. The MAX3237E is offered in an SSOP package. The MAX3246E is offered in the ultra-small 6 x 6 UCSP™ package.



Features of Aviation Parts:

  • For Space-Constrained Applications
  • • MAX3228E/MAX3229E: ±15kV ESD-Protected,
  • +2.5V to +5.5V, RS-232 Transceivers in UCSP
  • For Low-Voltage or Data Cable Applications
  • • MAX3380E/MAX3381E: +2.35V to +5.5V, 1μA,
  • 2Tx/2Rx, RS-232 Transceivers with ±15kV
  • • ESD-Protected I/O and Logic Pins



Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: Analog Devices Inc.
Product Category: RS-232 Interface IC
RoHS: Details
Mounting Style: SMD/SMT
Package / Case: SSOP-16
Series: MAX3232E
Function: Transceiver
Data Rate: 250 kb/s
Number of Drivers: 2 Driver
Number of Receivers: 2 Receiver
Duplex: Full Duplex
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 3 V
Operating Supply Current: 1 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
ESD Protection: 15 kV
Packaging: Tube
Brand: Analog Devices / Maxim Integrated
Development Kit: MAX3232PMB1#
Height: 1.78 mm
Length: 6.33 mm
Operating Supply Voltage: 3.3 V, 5 V
Product: RS-232 Transceivers
Product Type: RS-232 Interface IC
Propagation Delay Time: 0.15 us
Shutdown: Without Shutdown
Factory Pack Quantity: 76
Subcategory: Interface ICs
Supply Type: Single Supply
Width: 5.38 mm
Part # Aliases: MAX3232E
Unit Weight: 0.004586 oz
