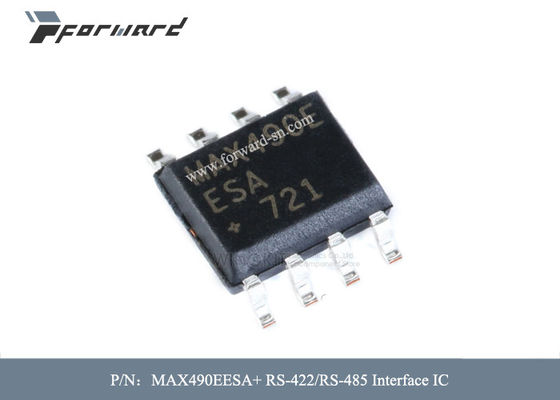

MAX490EESA+ RS-422 RS485 Interface IC Supply Voltage - Max 5 V

Product Details

Model Number: MAX490EESA+ RS-422/RS-485

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Get Best Price
Highlight:

2.5Mb/s rs 485 interface ic

,

5V rs 485 interface ic

,

MAX490EESA

Mfr:
Analog Devices Inc.
Product Category:
RS-422/RS-485 Interface IC
Mounting Style:
SMD/SMT
Package / Case:
SOIC-8
Number Of Drivers::
1 Driver
Number Of Receivers:
1 Receiver
Data Rate:
2.5 Mb/s
Supply Voltage - Max:
5 V
Supply Voltage - Min:
5 V
Minimum Operating Temperature::
- 40 C
Mfr:
Analog Devices Inc.
Product Category:
RS-422/RS-485 Interface IC
Mounting Style:
SMD/SMT
Package / Case:
SOIC-8
Number Of Drivers::
1 Driver
Number Of Receivers:
1 Receiver
Data Rate:
2.5 Mb/s
Supply Voltage - Max:
5 V
Supply Voltage - Min:
5 V
Minimum Operating Temperature::
- 40 C
MAX490EESA+ RS-422 RS485 Interface IC Supply Voltage - Max 5 V

        Aviation Parts MAX490EESA+ RS-422/RS-485 Interface IC Supply Voltage - Max 5 V





Descriptions of Aviation Parts:



The MAX481E, MAX483E, MAX485E, MAX487E– MAX491E, and MAX1487E are low-power transceivers for RS-485 and RS-422 communications in harsh environments. Each driver output and receiver input is protected against ±15kV electro-static discharge (ESD) shocks, without latchup. These parts contain one driver and one receiver. The MAX483E, MAX487E, MAX488E, and MAX489E feature reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. The driver slew rates of the MAX481E, MAX485E, MAX490E, MAX491E, and MAX1487E are not limited, allowing them to transmit up to 2.5Mbps.



These transceivers draw as little as 120µA supply current when unloaded or when fully loaded with disabled drivers (see Selector Guide). Additionally, the MAX481E, MAX483E, and MAX487E have a low-current shutdown mode in which they consume only 0.5µA. All parts operate from a single +5V supply.



Drivers are short-circuit current limited, and are protected against excessive power dissipation by thermal shutdown circuitry that places their outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit.



The MAX487E and MAX1487E feature quarter-unit-load receiver input impedance, allowing up to 128 transceivers on the bus. The MAX488E–MAX491E are designed for full-duplex communications, while the MAX481E, MAX483E, MAX485E, MAX487E, and MAX1487E are designed for half-duplex applications. For applications that are not ESD sensitive see the pinand function-compatible MAX481, MAX483, MAX485, MAX487–MAX491, and MAX1487.



Features of Aviation Parts:

  • ♦ For Fault-Tolerant Applications
  • MAX3430: ±80V Fault-Protected, Fail-Safe, 1/4
  • Unit Load, +3.3V, RS-485 Transceiver
  • MAX3440E–MAX3444E: ±15kV ESD-Protected,
  • ±60V Fault-Protected, 10Mbps, Fail-Safe,
  • RS-485/J1708 Transceivers
  • ♦ For Space-Constrained Applications
  • MAX3460–MAX3464: +5V, Fail-Safe, 20Mbps,
  • Profibus RS-485/RS-422 Transceivers
  • MAX3362: +3.3V, High-Speed, RS-485/RS-422
  • Transceiver in a SOT23 Package
  • MAX3280E–MAX3284E: ±15kV ESD-Protected,
  • 52Mbps, +3V to +5.5V, SOT23, RS-485/RS-422,
  • True Fail-Safe Receivers
  • MAX3293/MAX3294/MAX3295: 20Mbps, +3.3V,
  • SOT23, RS-485/RS-422 Transmitters
  • ♦ For Multiple Transceiver Applications
  • MAX3030E–MAX3033E: ±15kV ESD-Protected,
  • +3.3V, Quad RS-422 Transmitters
  • ♦ For Fail-Safe Applications
  • MAX3080–MAX3089: Fail-Safe, High-Speed
  • (10Mbps), Slew-Rate-Limited RS-485/RS-422
  • Transceivers
  • ♦ For Low-Voltage Applications
  • MAX3483E/MAX3485E/MAX3486E/MAX3488E/
  • MAX3490E/MAX3491E: +3.3V Powered, ±15kV
  • ESD-Protected, 12Mbps, Slew-Rate-Limited,
  • True RS-485/RS-422 Transceiver



Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: Analog Devices Inc.
Product Category: RS-422/RS-485 Interface IC
RoHS: Details
Series: MAX490E
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Function: Transceiver
Number of Drivers: 1 Driver
Number of Receivers: 1 Receiver
Data Rate: 2.5 Mb/s
Supply Voltage - Max: 5 V
Supply Voltage - Min: 5 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Packaging: Tube
Brand: Analog Devices / Maxim Integrated
Duplex: Full Duplex
ESD Protection: 15 kV
Height: 1.5 mm
Input Voltage: 5 V
Length: 5 mm
Operating Supply Current: 300 uA
Operating Supply Voltage: 5 V
Output Current: 35 mA to 250 mA
Output Voltage: - 8 V to + 12.5 V
Pd - Power Dissipation: 471 mW
Product Type: RS-422/RS-485 Interface IC
Factory Pack Quantity: 100
Subcategory: Interface ICs
Width: 4 mm
Part # Aliases: MAX490E
Unit Weight: 0.019048 oz
