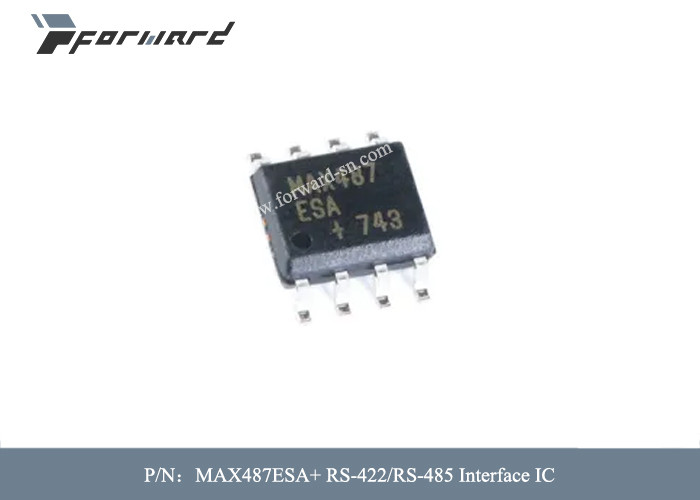

MAX487ESA+ RS-485 RS-422 Transceiver IC Supply 5V

Product Details

Model Number: MAX487ESA+ RS-422/RS-485

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Get Best Price
Highlight:

2.5Mbps rs422 transceiver ic

,

RS485 rs422 transceiver ic

,

MAX487ESA

Mfr:
Analog Devices Inc.
Product Category:
RS-422/RS-485 Interface IC
Mounting Style:
SMD/SMT
Package / Case:
SOIC-8
Number Of Drivers::
1 Driver
Number Of Receivers:
1 Receiver
Data Rate:
250 Kb/s
Supply Voltage - Max:
5 V
Supply Voltage - Min:
5 V
Minimum Operating Temperature::
- 40 C
Mfr:
Analog Devices Inc.
Product Category:
RS-422/RS-485 Interface IC
Mounting Style:
SMD/SMT
Package / Case:
SOIC-8
Number Of Drivers::
1 Driver
Number Of Receivers:
1 Receiver
Data Rate:
250 Kb/s
Supply Voltage - Max:
5 V
Supply Voltage - Min:
5 V
Minimum Operating Temperature::
- 40 C
MAX487ESA+ RS-485 RS-422 Transceiver IC Supply 5V

          Aviation Parts MAX487ESA+ RS-422/RS-485 Interface IC Supply Voltage - Max 5 V





Descriptions of Aviation Parts:



The MAX481, MAX483, MAX485, MAX487–MAX491, and MAX1487 are low-power transceivers for RS-485 and RS422 communication. Each part contains one driver and one receiver. The MAX483, MAX487, MAX488, and MAX489 feature reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. The driver slew rates of the MAX481, MAX485, MAX490, MAX491, and MAX1487 are not limited, allowing them to transmit up to 2.5Mbps.



These transceivers draw between 120µA and 500µA of supply current when unloaded or fully loaded with disabled drivers. Additionally, the MAX481, MAX483, and MAX487 have a low-current shutdown mode in which they consume only 0.1µA. All parts operate from a single 5V supply.



Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit.



The MAX487 and MAX1487 feature quarter-unit-load receiver input impedance, allowing up to 128 MAX487/ MAX1487 transceivers on the bus. Full-duplex communications are obtained using the MAX488–MAX491, while the MAX481, MAX483, MAX485, MAX487, and MAX1487 are designed for half-duplex applications.



Features of Aviation Parts:

  • ♦ For Fault-Tolerant Applications
  • MAX3430: ±80V Fault-Protected, Fail-Safe, 1/4
  • Unit Load, +3.3V, RS-485 Transceiver
  • MAX3440E–MAX3444E: ±15kV ESD-Protected,
  • ±60V Fault-Protected, 10Mbps, Fail-Safe,
  • RS-485/J1708 Transceivers
  • ♦ For Space-Constrained Applications
  • MAX3460–MAX3464: +5V, Fail-Safe, 20Mbps,
  • Profibus RS-485/RS-422 Transceivers
  • MAX3362: +3.3V, High-Speed, RS-485/RS-422
  • Transceiver in a SOT23 Package
  • MAX3280E–MAX3284E: ±15kV ESD-Protected,
  • 52Mbps, +3V to +5.5V, SOT23, RS-485/RS-422,
  • True Fail-Safe Receivers
  • MAX3293/MAX3294/MAX3295: 20Mbps, +3.3V,
  • SOT23, RS-485/RS-422 Transmitters
  • ♦ For Multiple Transceiver Applications
  • MAX3030E–MAX3033E: ±15kV ESD-Protected,
  • +3.3V, Quad RS-422 Transmitters
  • ♦ For Fail-Safe Applications
  • MAX3080–MAX3089: Fail-Safe, High-Speed
  • (10Mbps), Slew-Rate-Limited RS-485/RS-422
  • Transceivers
  • ♦ For Low-Voltage Applications
  • MAX3483E/MAX3485E/MAX3486E/MAX3488E/
  • MAX3490E/MAX3491E: +3.3V Powered, ±15kV
  • ESD-Protected, 12Mbps, Slew-Rate-Limited,
  • True RS-485/RS-422 Transceiver







Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: Analog Devices Inc.
Product Category: RS-422/RS-485 Interface IC
RoHS: Details
Series: MAX487
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Function: Transceiver
Number of Drivers: 1 Driver
Number of Receivers: 1 Receiver
Data Rate: 250 kb/s
Supply Voltage - Max: 5 V
Supply Voltage - Min: 5 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Packaging: Tube
Brand: Analog Devices / Maxim Integrated
Duplex: Half Duplex
Height: 1.5 mm
Length: 5 mm
Operating Supply Current: 250 uA
Operating Supply Voltage: 5 V
Product Type: RS-422/RS-485 Interface IC
Factory Pack Quantity: 100
Subcategory: Interface ICs
Width: 4 mm
Part # Aliases: MAX487
Unit Weight: 0.017870 oz







MAX487ESA+ RS-485 RS-422 Transceiver IC Supply 5V 0

MAX487ESA+ RS-485 RS-422 Transceiver IC Supply 5V 1
