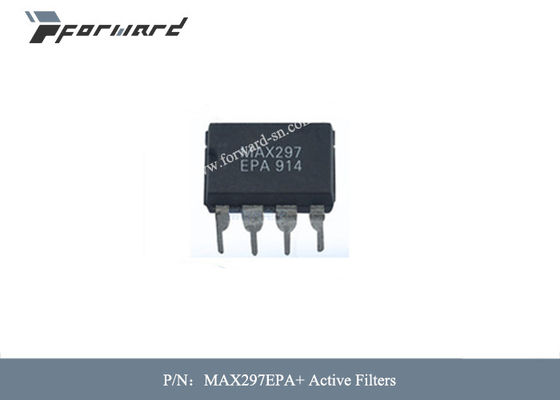

MAX297EPA+ Aviation Parts Active Filters 85C Analog Devices

Product Details

Model Number: MAX297EPA+

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Get Best Price
Highlight:

Aviation Parts 85C

,

Aviation Parts Active Filters

,

MAX297EPA

Mfr:
Analog Devices Inc.
Product Category:
Active Filters
Cutoff Frequency:
50 KHz
Number Of Channels:
1 Channel
Supply Voltage - Max:
11 V
Number Of Drivers::
11 V
Supply Voltage - Min::
2 Receiver
Supply Voltage - Max::
4.75 V
Minimum Operating:
- 40 C
Maximum Operating Temperature::
+ 85 C
Mfr:
Analog Devices Inc.
Product Category:
Active Filters
Cutoff Frequency:
50 KHz
Number Of Channels:
1 Channel
Supply Voltage - Max:
11 V
Number Of Drivers::
11 V
Supply Voltage - Min::
2 Receiver
Supply Voltage - Max::
4.75 V
Minimum Operating:
- 40 C
Maximum Operating Temperature::
+ 85 C
MAX297EPA+ Aviation Parts Active Filters 85C Analog Devices

       Aviation Parts MAX297EPA+ Active Filters Maximum Operating Temperature + 85 C





Descriptions of Aviation Parts:



The MAX293/MAX294/MAX297 are easy-to-use, 8th-order, lowpass, elliptic, switched-capacitor filters that can be set up with corner frequencies from 0.1Hz to 25kHz (MAX293/MAX294) or from 0.1Hz to 50kHz (MAX297). The MAX293/MAX297's 1.5 transition ratio provides sharp rolloff and -80dB of stopband rejection. The MAX294's 1.2 transition ratio provides the steepest rolloff and -58dB of stopband rejection. All three filters have fixed responses, so the design task is limited to selecting the clock frequency that controls the filter's corner frequency. An external capacitor is used to generate a clock using the internal oscillator, or an external clock signal can be used. An uncommitted op amp (noninverting input grounded) is provided for building a continuous-time lowpass filter for post-filtering or anti-aliasing. Steep rolloff and high order make these filters ideal for anti-aliasing applications that require maximum bandwidth, and for communication applications that require filtering signals in close proximity within the frequency domain. The MAX293/MAX294/MAX297 are available in 8-pin DIP and 16-pin wide SO packages, delivering aggressive performance from a tiny area.



Features of Aviation Parts:



l8th-Order Lowpass Elliptic Filters
Clock-Tunable Corner-Frequency Range: 0.1Hz to 25kHz (MAX293/MAX294) 0.1Hz to 50kHz (MAX297)
0.1Hz to 25kHz (MAX293/MAX294)
0.1Hz to 50kHz (MAX297)
No External Resistors or Capacitors Required
Internal or External Clock
Clock to Corner Frequency Ratio 100:1 (MAX293/MAX294) 50:1 (MAX297)
100:1 (MAX293/MAX294)
50:1 (MAX297)
Operate with a Single +5V Supply or Dual ±5V Supplies
Uncommitted Op Amp for Anti-Aliasing or Clock-Noise Filtering
8-Pin DIP and 16-Pin Wide SO Packages



Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: Analog Devices Inc.
Product Category: Active Filters
RoHS: Details
Series: MAX297
Cutoff Frequency: 50 kHz
Number of Channels: 1 Channel
Supply Voltage - Max: 11 V
Supply Voltage - Min: 4.75 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Mounting Style: Through Hole
Package / Case: PDIP-8
Packaging: Tube
Brand: Analog Devices / Maxim Integrated
Height: 4.45 mm
Length: 9.91 mm
Operating Supply Voltage: 5 V
Product Type: Active Filters
Factory Pack Quantity: 50
Subcategory: Filters
Width: 7.87 mm
Part # Aliases: MAX297
Unit Weight: 0.032805 oz
