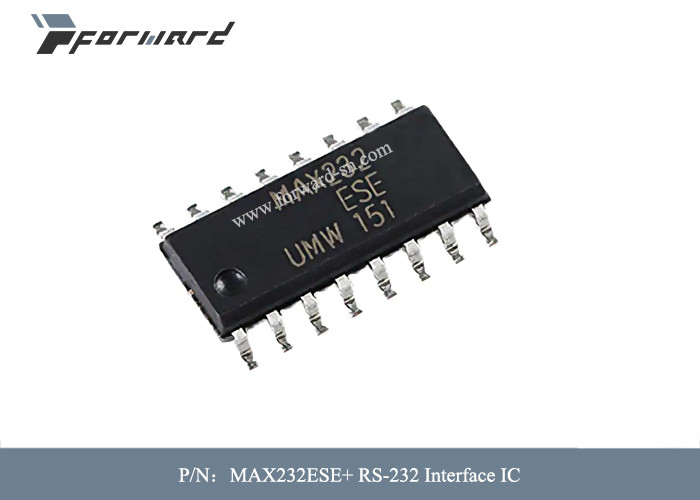

MAX232ESE RS-232 Interface IC Operating Supply Current: 10 MA
| Model Number | MAX232ESE+ RS-232 |
|---|---|
| Price | Negotiable |
| Packaging Details | boxes |
| Delivery Time | 12-14 weeks |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mfr | Analog Devices Inc. | Product Category | RS-232 Interface IC |
|---|---|---|---|
| Mounting Style | SMD/SMT | Function | Transceiver |
| Data Rate | 120 Kb/s | Number Of Drivers | 2 Driver |
| Number Of Receivers | 2 Receiver | Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 4.5 V | Operating Supply Current | 10 MA |
| Highlight | MAX232ESE rs232 switch ic,120kb/s rs232 switch ic,MAX232ESE |
||
Product Description
Aviation Parts MAX232ESE+ RS-232 Interface IC Operating Supply Current: 10 mA
Descriptions of Aviation Parts:
The MAX220–MAX249 family of line drivers/receivers is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available.
The MAX225, MAX233, MAX235, and MAX245/MAX246/ MAX247 use no external components and are recommended for applications where printed circuit board space is critical.
The MAX220-MAX249 are offered in 26 different packages with temperatures from 0 to +70°C up to -55°C to +125°C. See ordering information table at the end of the data sheet for all package and temperature options.
Features of Aviation Parts:
- I Integrated Charge Pump Circuitry
- Eliminates the Need for a Bipolar ±12V Supply
- Enables Single Supply Operation from +5V Supply
- Integrated Capacitors (MAX223, MAX233, MAX235,
- MAX245–MAX247)
- Saves Power for Reduced Power Requirements
- 5μW Shutdown Mode
Specifications of Aviation Parts:
| Product Attribute | Attribute Value |
| Manufacturer: | Analog Devices Inc. |
| Product Category: | RS-232 Interface IC |
| RoHS: | Details |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOIC-Narrow-16 |
| Series: | MAX232 |
| Function: | Transceiver |
| Data Rate: | 120 kb/s |
| Number of Drivers: | 2 Driver |
| Number of Receivers: | 2 Receiver |
| Duplex: | Full Duplex |
| Supply Voltage - Max: | 5.5 V |
| Supply Voltage - Min: | 4.5 V |
| Operating Supply Current: | 10 mA |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 85 C |
| ESD Protection: | Without ESD Protection |
| Packaging: | Tube |
| Brand: | Analog Devices / Maxim Integrated |
| Height: | 1.5 mm |
| Length: | 10 mm |
| Operating Supply Voltage: | 5 V |
| Product: | RS-232 Transceivers |
| Product Type: | RS-232 Interface IC |
| Propagation Delay Time: | 10 us |
| Shutdown: | Without Shutdown |
| Factory Pack Quantity: | 50 |
| Subcategory: | Interface ICs |
| Supply Type: | Single Supply |
| Width: | 4 mm |
| Part # Aliases: | MAX232 |
| Unit Weight: | 0.005538 oz |
