MAX232AMJE RS-232 Interface IC Aviation Parts Operating Supply Current 10 MA

Product Details

Model Number: MAX232AMJE

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Get Best Price
Highlight:

Interface IC Aviation Parts

,

Aviation Parts 10mA

,

MAX232AMJE

Mfr:
Analog Devices Inc.
Product Category:
RS-232 Interface IC
Mounting Style::
Through Hole
Package / Case:
CDIP-16
Function::
Transceiver
Data Rate::
200 Kb/s
Number Of Drivers::
2 Driver
Number Of Receivers:
2 Receiver
Supply Voltage - Max:
5.5 V
Supply Voltage - Min:
4.5 V
Mfr:
Analog Devices Inc.
Product Category:
RS-232 Interface IC
Mounting Style::
Through Hole
Package / Case:
CDIP-16
Function::
Transceiver
Data Rate::
200 Kb/s
Number Of Drivers::
2 Driver
Number Of Receivers:
2 Receiver
Supply Voltage - Max:
5.5 V
Supply Voltage - Min:
4.5 V
MAX232AMJE RS-232 Interface IC Aviation Parts Operating Supply Current 10 MA

                Aviation Parts MAX232AMJE RS-232 Operating Supply Current 10 mA





Descriptions of Aviation Parts:



The MAX220–MAX249 family of line drivers/receivers is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available.



The MAX225, MAX233, MAX235, and MAX245/MAX246/ MAX247 use no external components and are recommended for applications where printed circuit board space is critical.



The MAX220-MAX249 are offered in 26 different packages with temperatures from 0 to +70°C up to -55°C to +125°C. See ordering information table at the end of the data sheet for all package and temperature options.



Features of Aviation Parts:

  •  Integrated Charge Pump Circuitry
  •  Eliminates the Need for a Bipolar ±12V Supply
  •  Enables Single Supply Operation from +5V Supply
  •  Integrated Capacitors (MAX223, MAX233, MAX235,
  • MAX245–MAX247)
  • Saves Power for Reduced Power Requirements
  •  5μW Shutdown Mode.





Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: Analog Devices Inc.
Product Category: RS-232 Interface IC
RoHS: N
Mounting Style: Through Hole
Package / Case: CDIP-16
Series: MAX232
Function: Transceiver
Data Rate: 200 kb/s
Number of Drivers: 2 Driver
Number of Receivers: 2 Receiver
Duplex: Full Duplex
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Operating Supply Current: 10 mA
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Packaging: Tube
Brand: Analog Devices / Maxim Integrated
Height: 3.3 mm (Max)
Length: 21.34 mm (Max)
Operating Supply Voltage: 5 V
Product: RS-232 Transceivers
Product Type: RS-232 Interface IC
Propagation Delay Time: 3.5 us, 1 us
Shutdown: Without Shutdown
Factory Pack Quantity: 25
Subcategory: Interface ICs
Supply Type: Single Supply
Width: 7.87 mm (Max)
Part # Aliases: MAX232

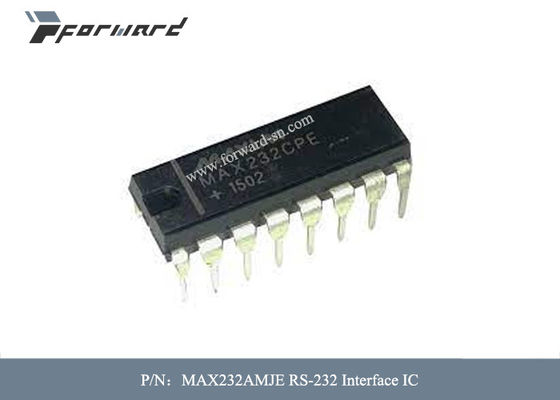

MAX232AMJE RS-232 Interface IC Aviation Parts Operating Supply Current 10 MA 0
