RF Switch ICs SPDT Aviation Parts MA8334-001 10MHz

Product Details

Model Number: MA8334-001

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Get Best Price
Highlight:

SPDT Aviation Parts

,

Aviation Parts 10MHz

,

MA8334

Mfr:
MACOM
Product Category:
RF Switch ICs
Switch Configuration:
SPDT
Product Status:
Active
Minimum Frequency:
10 MHz
Maximum Frequency:
1 GHz
Insertion Loss:
0.35 DB
Off Isolation - Typ::
24 DB
Minimum Operating Temperature::
- 65 C
Plating:
+ 125 C
Mfr:
MACOM
Product Category:
RF Switch ICs
Switch Configuration:
SPDT
Product Status:
Active
Minimum Frequency:
10 MHz
Maximum Frequency:
1 GHz
Insertion Loss:
0.35 DB
Off Isolation - Typ::
24 DB
Minimum Operating Temperature::
- 65 C
Plating:
+ 125 C

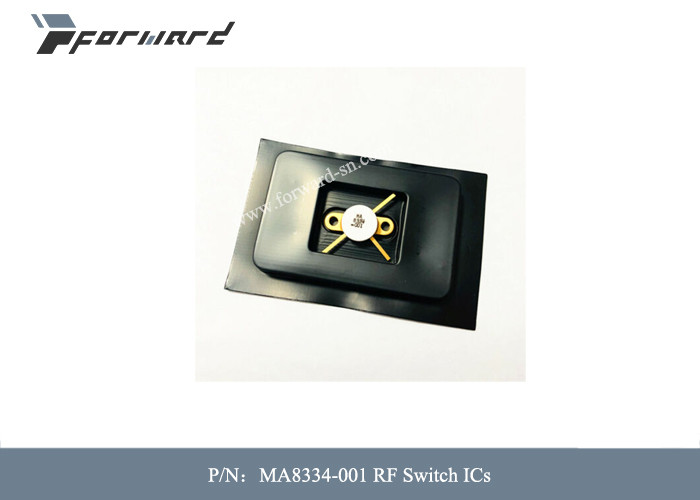

RF Switch ICs SPDT Aviation Parts MA8334-001 10MHz

                    Aviation Parts MA8334-001 RF Switch ICs Minimum Frequency 10 MHz





Descriptions of Aviation Parts:



M/A-COM Technology Solutions MA8334 Series of multi-throw high power switch modules are SPDT and SP3T devices intended for use from 10 MHz to 1000 MHz. They are designed to function with an input power of 100 watts, CW, into a 50 Ω load with a nominal source VSWR of 1.3:1. These switch modules are constructed using advanced hybrid technology and utilize PIN diode chips that have been optimized for low loss and high reliability.



These switch modules make use of M/A-COM Tech’s, high voltage, CERMACHIP™ PIN diode chip distinguished by its low thermal resistance and low intermodulation distortion. Applications for the MA8334 switch modules include 100W incident power T/R antenna and diversity switches. Typical bias conditions for nominal switch operation are +50mA @ +1V for the low loss condition and -100V @ 0 mA for isolation.



Features of Aviation Parts:

  • ¨ SPDT and SP3T Series Diode Designs
  • ¨ Low Intermodulation Distortion, 80 dBc
  • ¨ High Average Power, 100 W
  • ¨ Wide Bandwidth, 10 MHz to 1000 MHz
  • ¨ Low Insertion Loss
  • ¨ High Isolation
  • ¨ RoHS Compliant



Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: MACOM
Product Category: RF Switch ICs
RoHS: Details
Switch Configuration: SPDT
Minimum Frequency: 10 MHz
Maximum Frequency: 1 GHz
Insertion Loss: 0.35 dB
Off Isolation - Typ: 24 dB
Minimum Operating Temperature: - 65 C
Maximum Operating Temperature: + 125 C
Package / Case: 844-001
Technology: Si
Packaging: Bulk
Brand: MACOM
Number of Switches: Single
Operating Supply Current: 50 mA
Product Type: RF Switch ICs
Factory Pack Quantity: 25
Subcategory: Wireless & RF Integrated Circuits
