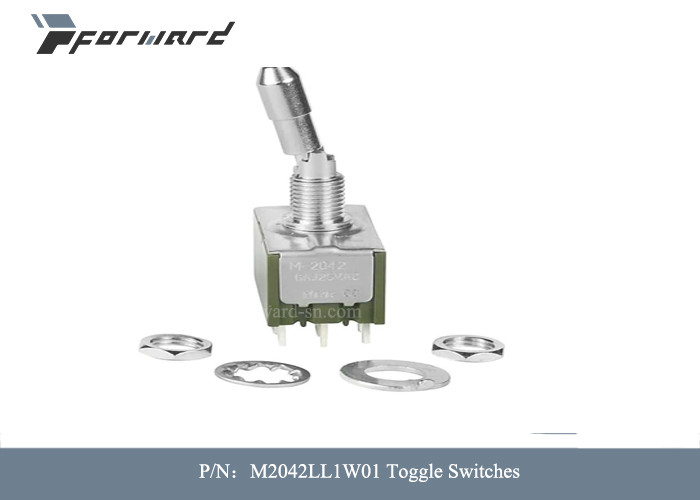

M2042LL1W01 Aviation Parts Toggle Switches Current Rating 4A 6A

                     Aviation Parts M2042LL1W01 Toggle Switches Current Rating 4 A, 6 A


Descriptions of Aviation Parts:

NKK Switches M Series Toggles feature a standard antirotation design on noncylindrical levers that mates the toggle and bushing. These toggles have two flatted sides on the bottom of the toggle which fit into a complementary opening inside the bushing, anti-jamming design to protect contacts from downward force, abd high torque bushing construction. High insulating barriers increase isolation of circuits in multipole devices and provide added protection to the contact points. NKK Switches M Series Toggles have a molded diallyl phthalate case (UL flammability rate of 94V-0) and epoxy sealed terminals to prevent entry of solder flux and other contaminants. The series is available in bushing mount, bracket PC mount, and angle PC mount styles.

Features of Aviation Parts:

• Antirotation design, standard on noncylindrical levers, mates toggle and bushing; bottom of toggle has two flatted sides which fit into a complementary opening inside bushing.
• Antijamming design protects contacts from damage due to excessive downward force on actuator. High torque bushing construction prevents rotation or separation from frame during installation. High insulating barriers increase isolation of circuits in multipole devices and provide added protection to contact points.
• Molded diallyl phthalate case has a UL flammability rating of 94V-0.
• Epoxy sealed terminals prevent entry of solder flux and other contaminants.
• Prominent external insulating barriers increase insulation resistance and dielectric strength. Interlocked actuator block, lever, and interior guide prevent switch failure due to biased lever movement.
• Clinching of frame to case well above base and terminals provides 1,500V dielectric strength.


Specifications of Aviation Parts:
