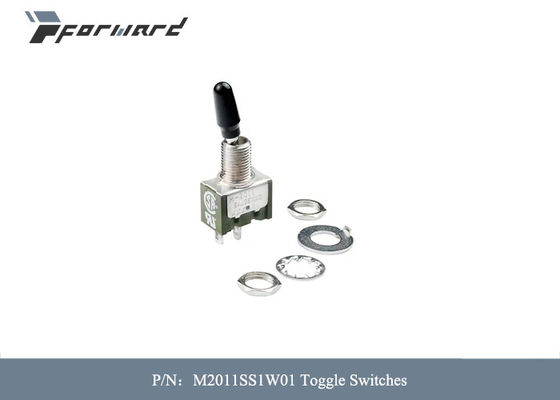

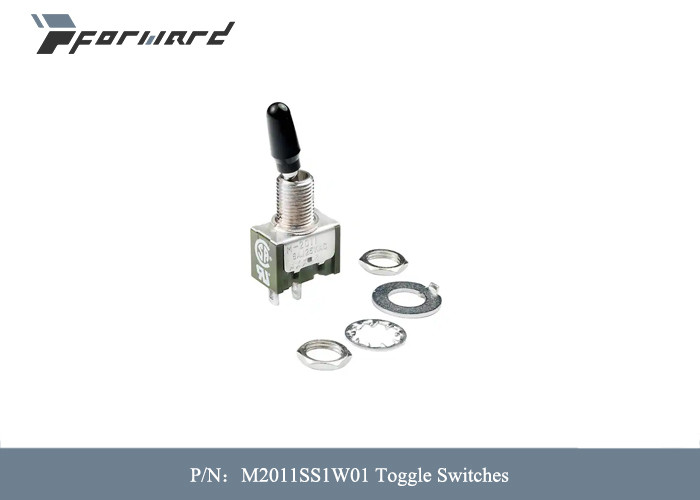

M2011SS1W01 Toggle Switches Current Rating 4A 6A

Product Details

Model Number: M2011SS1W01 Toggle Switches

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:

Toggle Switches 4A

,

Toggle Switches 6A

,

M2011SS1W01

Manufacturer:
NKK Switches
Product Category:
Toggle Switches
Mounting Style:
Panel Mount
Termination Style:
Solder Lug
Current Rating::
4 A, 6 A
Bushing Size:
1/4-40
Voltage Rating AC:
125 VAC
Voltage Rating DC:
30 VDC
Manufacturer:
NKK Switches
Product Category:
Toggle Switches
Mounting Style:
Panel Mount
Termination Style:
Solder Lug
Current Rating::
4 A, 6 A
Bushing Size:
1/4-40
Voltage Rating AC:
125 VAC
Voltage Rating DC:
30 VDC
M2011SS1W01 Toggle Switches Current Rating 4A 6A

                     Aviation Parts M2011SS1W01 Toggle Switches Current Rating 4 A, 6 A


Descriptions of Aviation Parts:

NKK Switches M Series Toggles feature a standard antirotation design on noncylindrical levers that mates the toggle and bushing. These toggles have two flatted sides on the bottom of the toggle which fit into a complementary opening inside the bushing, anti-jamming design to protect contacts from downward force, abd high torque bushing construction. High insulating barriers increase isolation of circuits in multipole devices and provide added protection to the contact points. NKK Switches M Series Toggles have a molded diallyl phthalate case (UL flammability rate of 94V-0) and epoxy sealed terminals to prevent entry of solder flux and other contaminants. The series is available in bushing mount, bracket PC mount, and angle PC mount styles.


Features of Aviation Parts:

  • Antirotation design, standard on noncylindrical levers, mates toggle and bushing; bottom of toggle has two flatted sides which fit into a complementary opening inside bushing.
  • Antijamming design protects contacts from damage due to excessive downward force on actuator.
  • High torque bushing construction prevents rotation or separation from frame during installation.
  • High insulating barriers increase isolation of circuits in multipole devices and provide added protection to contact points.
  • Molded diallyl phthalate case has a UL flammability rating of 94V-0.
  • Epoxy sealed terminals prevent entry of solder flux and other contaminants.
  • Prominent external insulating barriers increase insulation resistance and dielectric strength.
  • Interlocked actuator block, lever, and interior guide prevent switch failure due to biased lever movement.
  • Clinching of frame to case well above base and terminals provides 1,500V dielectric strength.



Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: NKK Switches
Product Category: Toggle Switches
RoHS: Details
Illuminated: Non-Illuminated
Illumination Color: -
Lamp Type: -
Contact Form: SPST
Switch Function: ON - OFF
Mounting Style: Panel Mount
Termination Style: Solder Lug
Current Rating: 4 A, 6 A
Voltage Rating AC: 125 VAC
Voltage Rating DC: 30 VDC
Bushing Size: 1/4-40
Actuator: Bat
Terminal Seal: Epoxy
Contact Plating: Silver
Compliance: -
IP Rating: -
Series: M
Actuator Style: Bat
Brand: NKK Switches
Color: Multi Color
Contact Material: Silver
Flammability Rating: UL 94 V-0
Housing Material: Brass
Illumination: Non-Illuminated
Life: 25000 Cycles
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
Mounting Angle: Vertical
Mounting Type: Bushing
Product Type: Toggle Switches
Factory Pack Quantity: 1
Subcategory: Switches
Type: Miniature toggles
Part # Aliases: M-2011NSS1
Unit Weight: 0.234431 oz
