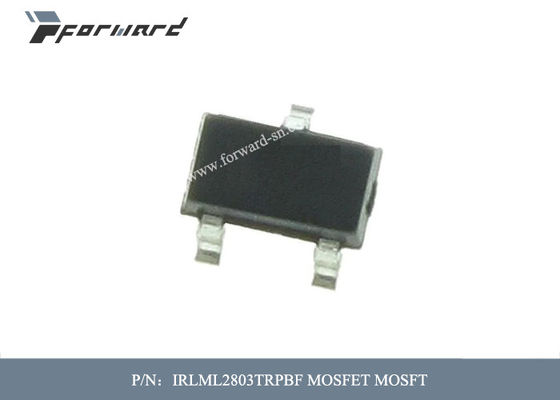

Aviation PartsIRLML2803TRPBF MOSFET Drain-Source Breakdown Voltage 30 V

Model Number IRFL4315TRPBF
Minimum Order Quantity 1 pcs
Price Negotiable
Packaging Details boxes
Payment Terms L/C, T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Manufacturer Infineon Product Category MOSFET
Technology Si Mounting Style SMD/SMT
Package / Case SOT-23-3 Transistor Polarity N-Channel
Id - Continuous Drain Current 1.2 A Rds On - Drain-Source Resistance 400 MOhms
Leave a Message
Product Description

  Aviation PartsIRLML2803TRPBF MOSFET Drain-Source Breakdown Voltage 30 V





Descriptions of Aviation Parts:



Fifth Generation HEXFETs from International Rectifierutilize advanced processing techniques to achieveextremely low on-resistance per silicon area. This benefit,combined with the fast switching speed and ruggedizeddevice design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficientand reliable device for use in a wide variety of applications. A customized leadframe has been incorporated into thestandard SOT-23 package to produce a HEXFET PowerMOSFET with the industry's smallest footprint. Thispackage, dubbed the Micro3, is ideal for applications where printed circuit board space is at a premium. The lowprofile (<1.1mm) of the Micro3 allows it to fit easily intoextremely thin application environments such as portableelectronics and PCMCIA cards.



Features of Aviation Parts:



  • Generation V Technology
  •  Ultra Low On-Resistance
  •  N-Channel MOSFET
  •  SOT-23 Footprint
  •  Low Profile (<1.1mm)
  •  Available in Tape and Reel
  •  Fast Switching
  •  Lead-Free
  •  RoHS Complaint, Halogen-Free



Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: Infineon
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: SMD/SMT
Package / Case: SOT-23-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 30 V
Id - Continuous Drain Current: 1.2 A
Rds On - Drain-Source Resistance: 400 mOhms
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage: 1 V
Qg - Gate Charge: 3.3 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Pd - Power Dissipation: 540 mW
Channel Mode: Enhancement
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: Infineon Technologies
Configuration: Single
Height: 1.1 mm
Length: 2.9 mm
Product: MOSFET Small Signal
Product Type: MOSFET
Factory Pack Quantity: 3000
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Width: 1.3 mm
Part # Aliases: IRLML2803TRPBF SP001572964
Unit Weight: 0.000282 oz
