Aviation Parts IRFR9214PBF MOSFET P-Chan Drain-Source Breakdown Voltage 250 V

Product Details

Model Number: IRFR9214PBF

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Manufacturer::
Vishay
Product Category:
MOSFET
Technology:
Si
Mounting Style:
SMD/SMT
Package / Case:
TO-252-3
Transistor Polarity:
P-Channel
Id - Continuous Drain Current:
2.7 A
Rds On - Drain-Source Resistance:
3 Ohms
Manufacturer::
Vishay
Product Category:
MOSFET
Technology:
Si
Mounting Style:
SMD/SMT
Package / Case:
TO-252-3
Transistor Polarity:
P-Channel
Id - Continuous Drain Current:
2.7 A
Rds On - Drain-Source Resistance:
3 Ohms

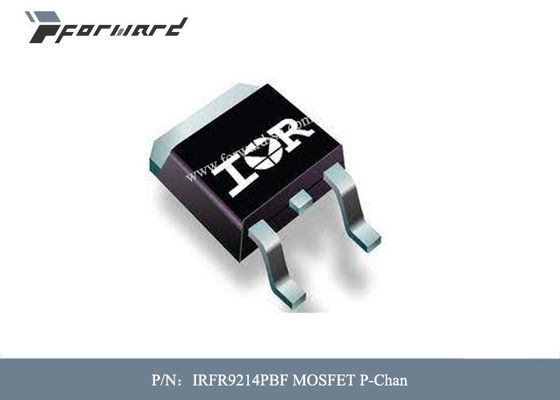

Aviation Parts IRFR9214PBF MOSFET P-Chan Drain-Source Breakdown Voltage 250 V

  Aviation Parts IRFR9214PBF MOSFET P-Chan Drain-Source Breakdown Voltage 250 V


Descriptions of Aviation Parts:

Third generation power MOSFETs from Vishay utilize advanced processing techniques to achieve low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU, SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface-mount applications.

Features of Aviation Parts:


  • Advanced process technology
  • Fully avalanche rated
  • Surface-mount (IRFR9214, SiHFR9214)
  • Straight lead (IRFU9214, SiHFU9214)
  • P-channel
  • Fast switching


Specifications of Aviation Parts:


Product AttributeAttribute Value
Manufacturer:Vishay
Product Category:MOSFET
RoHS:Details
Technology:Si
Mounting Style:SMD/SMT
Package / Case:TO-252-3
Transistor Polarity:P-Channel
Number of Channels:1 Channel
Vds - Drain-Source Breakdown Voltage:250 V
Id - Continuous Drain Current:2.7 A
Rds On - Drain-Source Resistance:3 Ohms
Vgs - Gate-Source Voltage:- 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage:4 V
Qg - Gate Charge:14 nC
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 150 C
Pd - Power Dissipation:50 W
Channel Mode:Enhancement
Series:IRFR/U
Packaging:Tube
Brand:Vishay Semiconductors
Configuration:Single
Height:2.38 mm
Length:6.73 mm
Product Type:MOSFET
Factory Pack Quantity:3000
Subcategory:MOSFETs
Width:6.22 mm
Unit Weight:0.011640 oz
