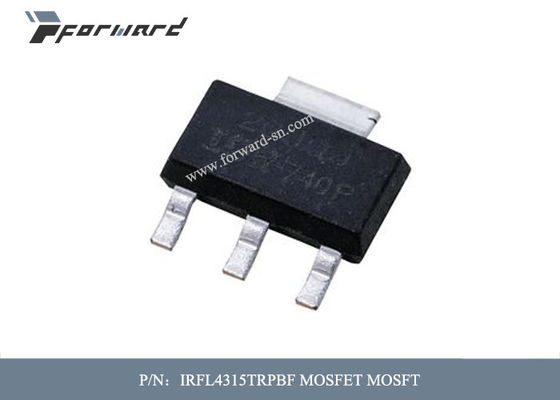

Aviation Parts IRFL4315TRPBF MOSFET Drain-Source Breakdown Voltage 150 V
| Model Number | IRFL4315TRPBF |
|---|---|
| Minimum Order Quantity | 1 pcs |
| Price | Negotiable |
| Packaging Details | boxes |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Infineon | Product Category | MOSFET |
|---|---|---|---|
| Technology | Si | Mounting Style | SMD/SMT |
| Package / Case | SOT-223-4 | Transistor Polarity | N-Channel |
| Id - Continuous Drain Current | 2.6 A | Rds On - Drain-Source Resistance | 185 MOhms |
| Highlight | IRFL4315TRPBF Aviation Parts,150 V Aviation Parts,IRFL4315TRPBF MOSFET |
||
Product Description
Aviation Parts IRFL4315TRPBF MOSFET Drain-Source Breakdown Voltage 150 V
Descriptions of Aviation Parts:
MOSFT 150V 2.6A 185mOhm 19nC
Features of Aviation Parts:
-
Low Gate to Drain Charge to Reduce
-
Switching Losses
-
Fully Characterized Capacitance Including
-
Effective COSS to Simplify Design, (See
-
App. Note AN1001)
-
Fully Characterized Avalanche Voltage
-
and Current
-
Lead-Free
Specifications of Aviation Parts:
| Product Attribute | Attribute Value |
| Manufacturer: | Infineon |
| Product Category: | MOSFET |
| RoHS: | Details |
| Technology: | Si |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOT-223-4 |
| Transistor Polarity: | N-Channel |
| Number of Channels: | 1 Channel |
| Vds - Drain-Source Breakdown Voltage: | 150 V |
| Id - Continuous Drain Current: | 2.6 A |
| Rds On - Drain-Source Resistance: | 185 mOhms |
| Vgs - Gate-Source Voltage: | - 30 V, + 30 V |
| Vgs th - Gate-Source Threshold Voltage: | 5 V |
| Qg - Gate Charge: | 19 nC |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 150 C |
| Pd - Power Dissipation: | 2.8 W |
| Channel Mode: | Enhancement |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Brand: | Infineon Technologies |
| Configuration: | Single |
| Height: | 1.6 mm |
| Length: | 6.5 mm |
| Product Type: | MOSFET |
| Factory Pack Quantity: | 2500 |
| Subcategory: | MOSFETs |
| Transistor Type: | 1 N-Channel |
| Width: | 3.5 mm |
| Part # Aliases: | IRFL4315TRPBF SP001556696 |
| Unit Weight: | 0.003951 oz |
