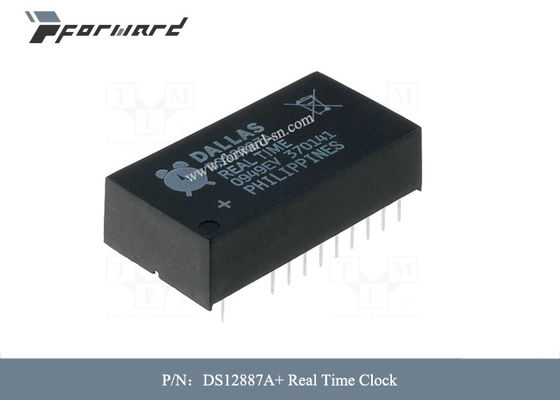

Aviation Parts DS12887A+ Real Time Clock RTC Memory Size 114 B

Product Details

Model Number: DS12887A+

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
RTC Memory Size:
114 B
Supply Voltage - Max::
5.5 V
Supply Voltage - Min:
4.5 V
Maximum Operating Temperature::
+ 70 C
Minimum Operating Temperature::
0 C
Packaging:
Tube
Brand:
Analog Devices / Maxim Integrated
Operating Supply Current::
15 MA
Series::
DS12887A
Subcategory::
Clock & Timer ICs
RTC Memory Size:
114 B
Supply Voltage - Max::
5.5 V
Supply Voltage - Min:
4.5 V
Maximum Operating Temperature::
+ 70 C
Minimum Operating Temperature::
0 C
Packaging:
Tube
Brand:
Analog Devices / Maxim Integrated
Operating Supply Current::
15 MA
Series::
DS12887A
Subcategory::
Clock & Timer ICs
Aviation Parts DS12887A+ Real Time Clock RTC Memory Size 114 B

                       Aviation Parts DS12887A+ Real Time Clock RTC Memory Size 114 B





Descriptions of Aviation Parts:



The DS12885, DS12887, and DS12C887 real-time clocks (RTCs) are designed to be direct replacements for the DS1285 and DS1287. The devices provide a real-time clock/calendar, one time-of-day alarm, three maskable interrupts with a common interrupt output, a programmable square wave, and 114 bytes of batterybacked static RAM (113 bytes in the DS12C887 and DS12C887A). The DS12887 integrates a quartz crystal and lithium energy source into a 24-pin encapsulated DIP package. The DS12C887 adds a century byte at address 32h. For all devices, the date at the end of the month is automatically adjusted for months with fewer than 31 days, including correction for leap years. The devices also operate in either 24-hour or 12-hour format with an AM/PM indicator. A precision temperature-compensated circuit monitors the status of VCC. If a primary power failure is detected, the device automatically switches to a backup supply. A lithium coin-cell battery can be connected to the VBAT input pin on the DS12885 to maintain time and date operation when primary power is absent. The device is accessed through a multiplexed byte-wide interface, which supports both Intel and Motorola modes.



Features of Aviation Parts:





♦ Drop-In Replacement for IBM AT Computer Clock/Calendar

♦ RTC Counts Seconds, Minutes, Hours, Day, Date,

Month, and Year with Leap Year Compensation Through 2099

♦ Binary or BCD Time Representation

♦ 12-Hour or 24-Hour Clock with AM and PM in 12-Hour Mode

♦ Daylight Saving Time Option

♦ Selectable Intel or Motorola Bus Timing

♦ Interfaced with Software as 128 RAM Locations

♦ 14 Bytes of Clock and Control Registers

♦ 114 Bytes of General-Purpose, Battery-Backed RAM (113 Bytes in the DS12C887 and DS12C887A)

♦ RAM Clear Function (DS12885, DS12887A, and DS12C887A)

♦ Interrupt Output with Three Independently Maskable Interrupt Flags

♦ Time-of-Day Alarm Once Per Second to Once Per Day

♦ Periodic Rates from 122μs to 500ms

♦ End-of-Clock Update Cycle Flag

♦ Programmable Square-Wave Output

♦ Automatic Power-Fail Detect and Switch Circuitry

♦ Optional 28-Pin PLCC Surface Mount Package or 32-Pin TQFP (DS12885)

♦ Optional Encapsulated DIP (EDIP) Package with Integrated Crystal and Battery (DS12887, DS12887A, DS12C887, DS12C887A)

♦ Optional Industrial Temperature Range Available

♦ Underwriters Laboratory (UL) Recognized.





Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: Analog Devices Inc.
Product Category: Real Time Clock
Shipping Restrictions: Available in USA only.
RoHS: Details
Mounting Style: Through Hole
Package / Case: EDIP-24
RTC Bus Interface: Multiplexed
Date Format: YY-MM-DD-dd
Time Format: HH:MM:SS (12 hr, 24 hr)
Battery Backup Switching: Integrated Battery
RTC Memory Size: 114 B
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Packaging: Tube
Brand: Analog Devices / Maxim Integrated
Function: Alarm, Calendar, Clock
Operating Supply Current: 15 mA
Product Type: Real Time Clocks
Series: DS12887A
Factory Pack Quantity: 14
Subcategory: Clock & Timer ICs
Part # Aliases: DS12887A 90-12887+A01
Unit Weight: 0.892167 oz

Aviation Parts DS12887A+ Real Time Clock RTC Memory Size 114 B 0
